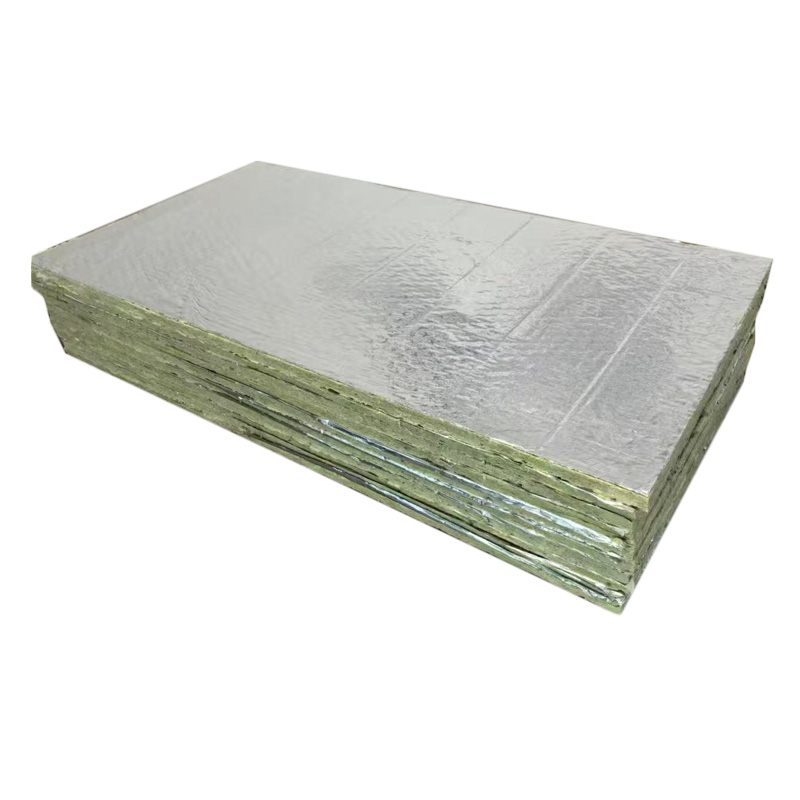

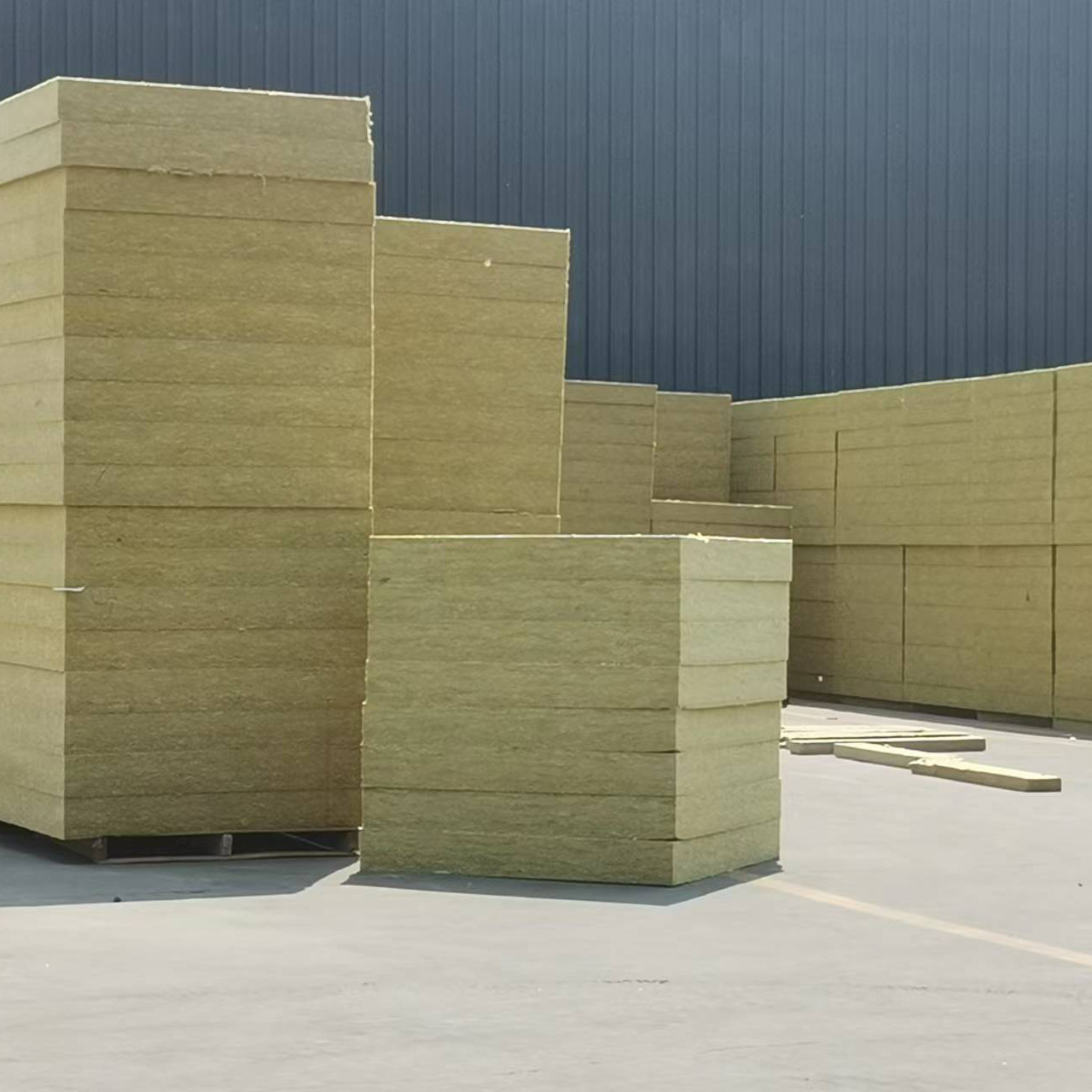

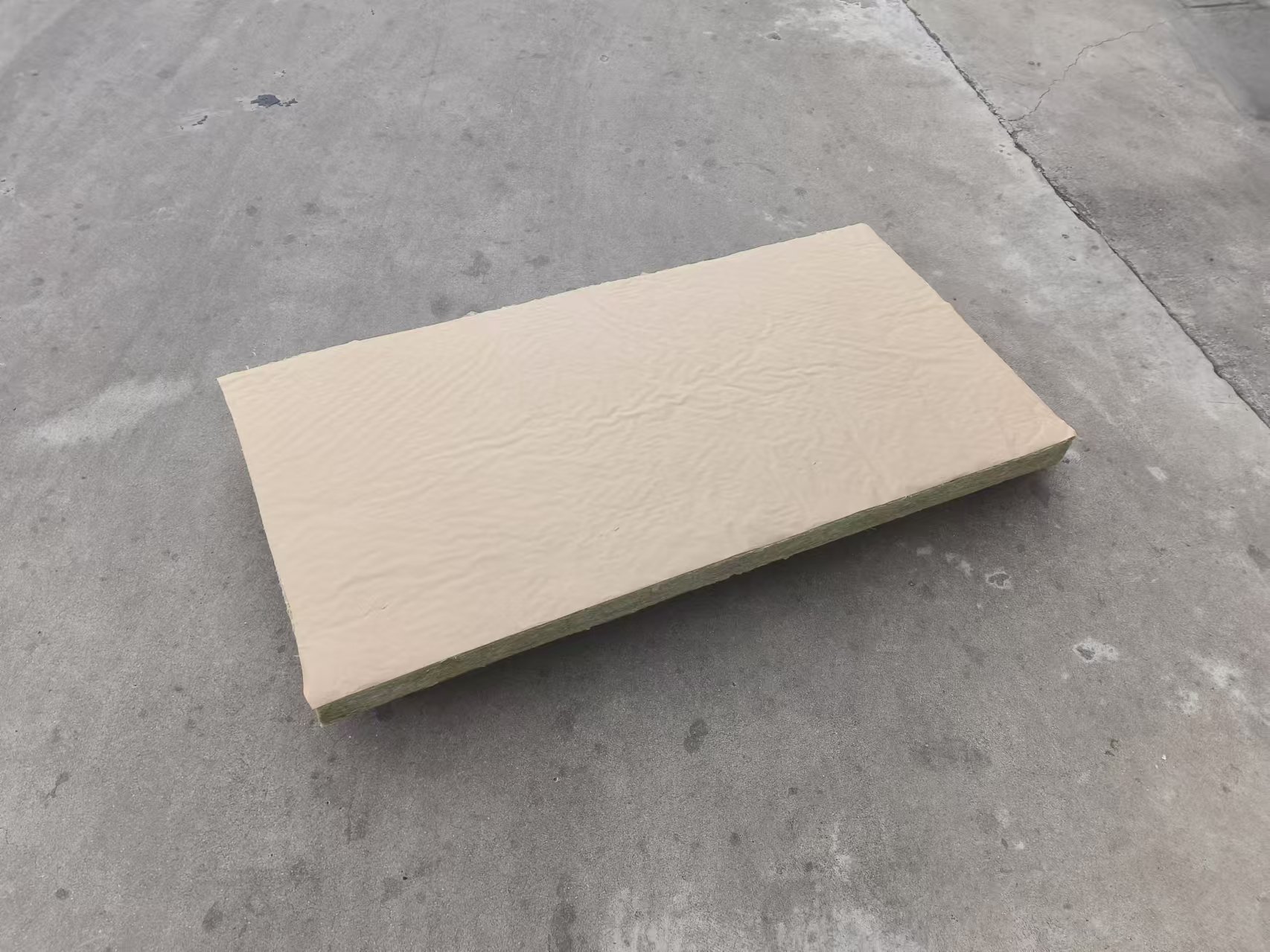

High Quality ISO Certified Sandwich Panels Rock Wool 50mm New Design Mineral Wool Board for Thermal Insulation
High Quality ISO Certified Sandwich Panels Rock Wool 50mm New Design Mineral Wool Board for Thermal Insulation
High Quality ISO Certified Sandwich Panels Rock Wool 50mm New Design Mineral Wool Board for Thermal Insulation
High Quality ISO Certified Sandwich Panels Rock Wool 50mm New Design Mineral Wool Board for Thermal Insulation
High Quality ISO Certified Sandwich Panels Rock Wool 50mm New Design Mineral Wool Board for Thermal Insulation
1 / 5
High Quality ISO Certified Sandwich Panels Rock Wool 50mm New Design Mineral Wool Board for Thermal Insulation
High Quality ISO Certified Sandwich Panels Rock Wool 50mm New Design Mineral Wool Board for Thermal Insulation
High Quality ISO Certified Sandwich Panels Rock Wool 50mm New Design Mineral Wool Board for Thermal Insulation
High Quality ISO Certified Sandwich Panels Rock Wool 50mm New Design Mineral Wool Board for Thermal Insulation
High Quality ISO Certified Sandwich Panels Rock Wool 50mm New Design Mineral Wool Board for Thermal Insulation

High Quality ISO Certified Sandwich Panels Rock Wool 50mm New Design Mineral Wool Board for Thermal Insulation

Send Inquiry

Product Description

Product Overview
NEW PRODUCT
New Insulation Products
SPECIFICATION
Standard Size
APPLICATION Density (KG/M³) Width Thickness Length
inch mm inch mm inch mm
Building (roof/wall)
OR
Industry (Pipe, Device etc.)		 40-70 24" / 48" 600 / 1200 2" - 8" 50-200 48" / 96" 1200 / 2400
80-110 24" / 48" 600 / 1200 2.5" - 6" 50-150 48" / 96" 1200 / 2400
120-150 24" / 48" 600 / 1200 1" - 5" 25-120 48" / 96" 1200 / 2400
160-200 24" / 48" 600 / 1200 1" - 4" 25-100 48" / 96" 1200 / 2400
Note:
  • Standard product width includes 24" and 48" (600mm and 1200mm). Can be customized.
  • Thickness may vary by request location. Suggest using two layers of half thickness instead when thickness is more than 200mm.
  • Standard product lengths include 48" and 96" (1200mm and 2400mm), other lengths can be customized.
  • If you request sizes out of the size list, please contact us.
Product parameter
PARAMETER PR-L100 PR-L120 UNIT STANDARD
Compressive Strength ≥60 ≥80 kpa ASTM C165/EN826
Tensile Strength ≥120 ≥150 kpa ASTM C303
Thermal Conductivity* ≤0.034 ≤0.034 W/mk ASTM C177
Hydrophobic Rate ≥99 % GB/T 10299-2011
Water Absorption ≤1 kg/m2 EN1609
Moisture Absorption ≤0.2 %by vol. ASTM C1104/C1104M
Dimensional Stability ≤1.0 % ASTM C592-24 Section 8.2.1
Thermal Stability (Heating Linear Shrinkage) ≤1.0 % ASTM C356
Reaction to fire Euro Class A1 Surface burning characteristic; Flame spread = Passed, Smoke corrosion specification as per ASTM C795 -- EN13501-1 ASTM E84
Acidity Coefficient ≥1.8 -- GB/T 11835-2016
Maximum use temperature 750℃ ℃ ASTM C411
Remark:
Thermal conductivity*: The thermal conductivity value of the series is calculated as the average temperature. Test methods and judgment standards are slightly different, and the test results are different.
Product Showcase
Insulation Application Detail

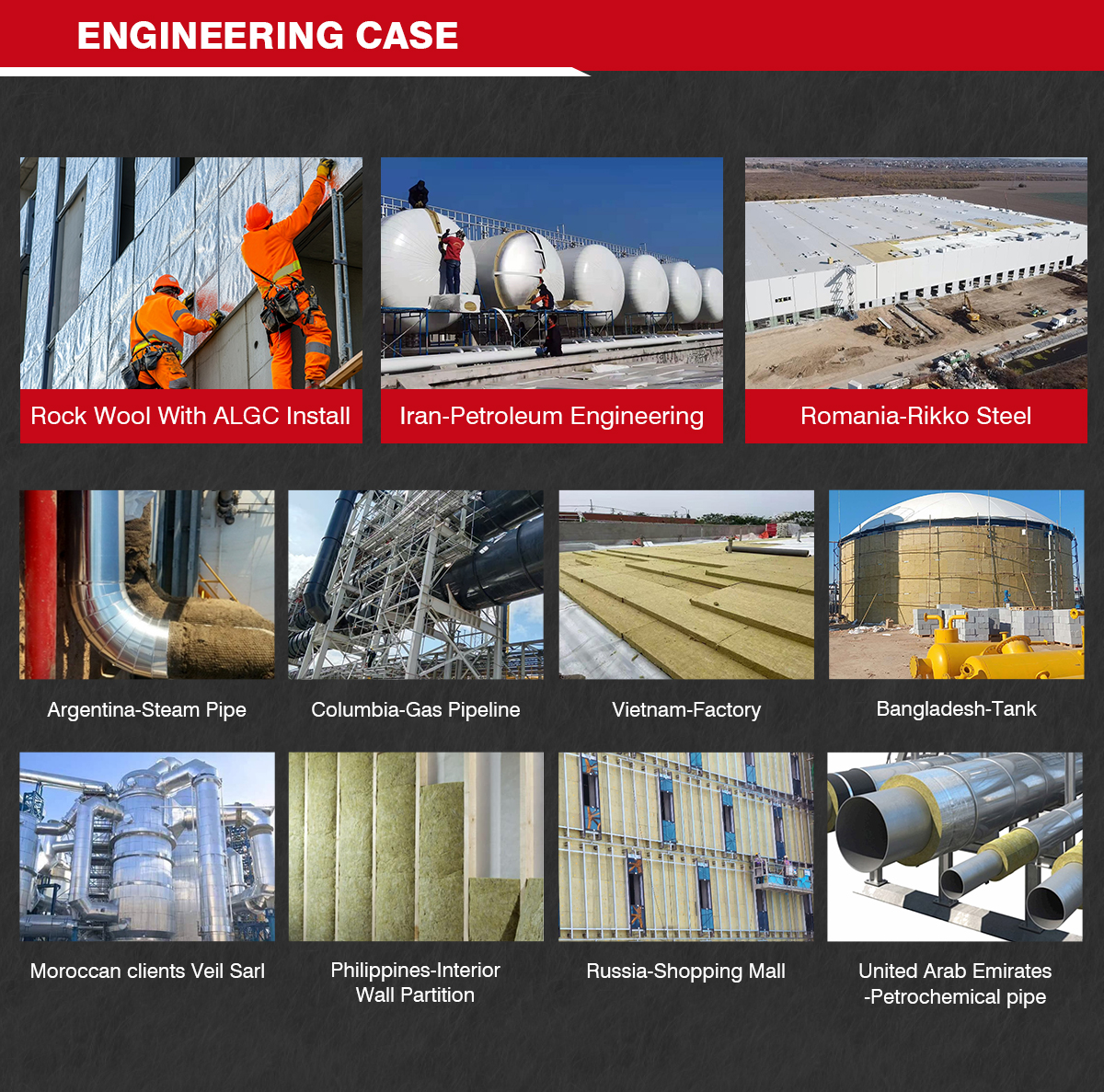

Insulation Product Details 1
Insulation Product Details 2

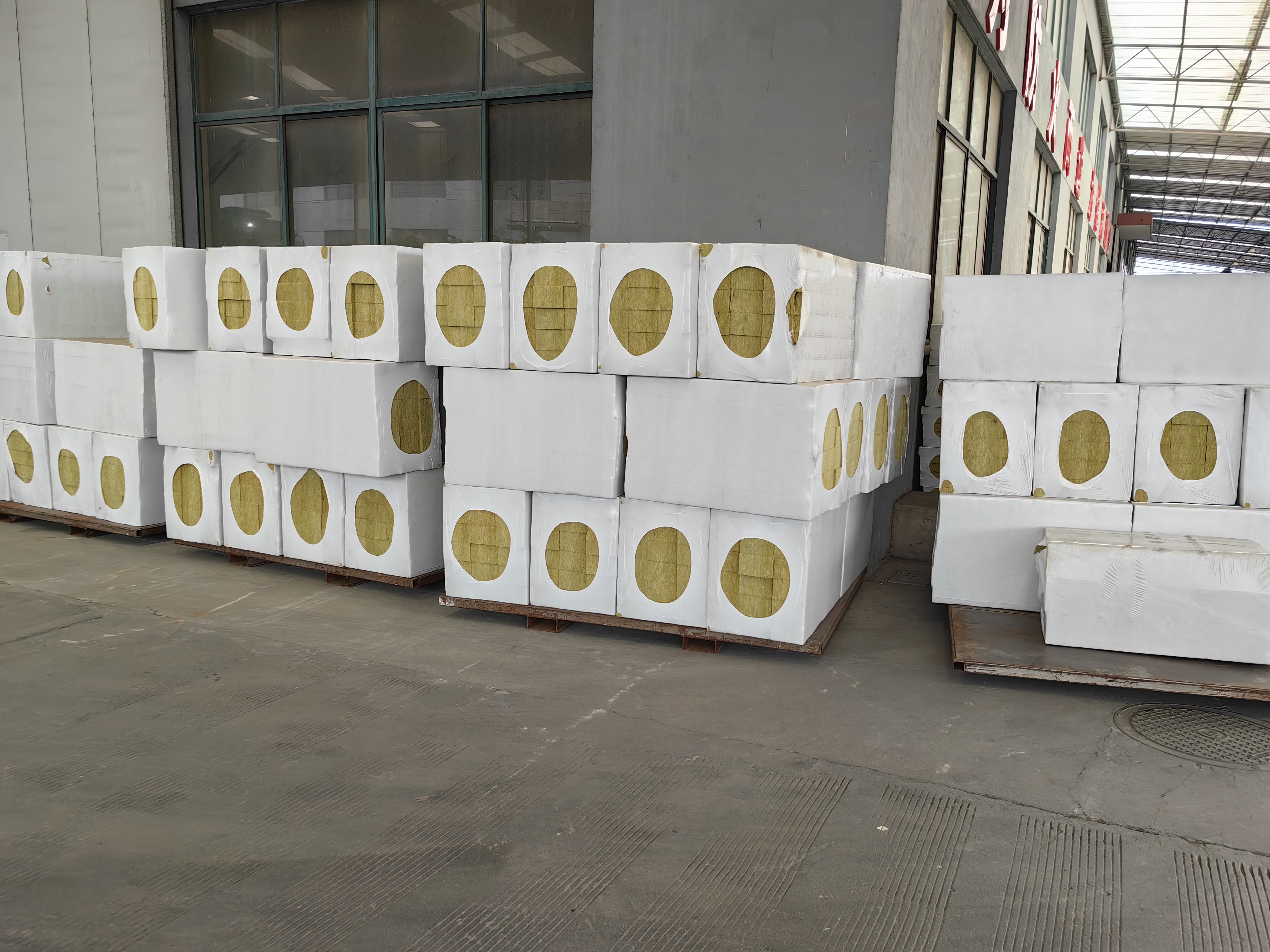

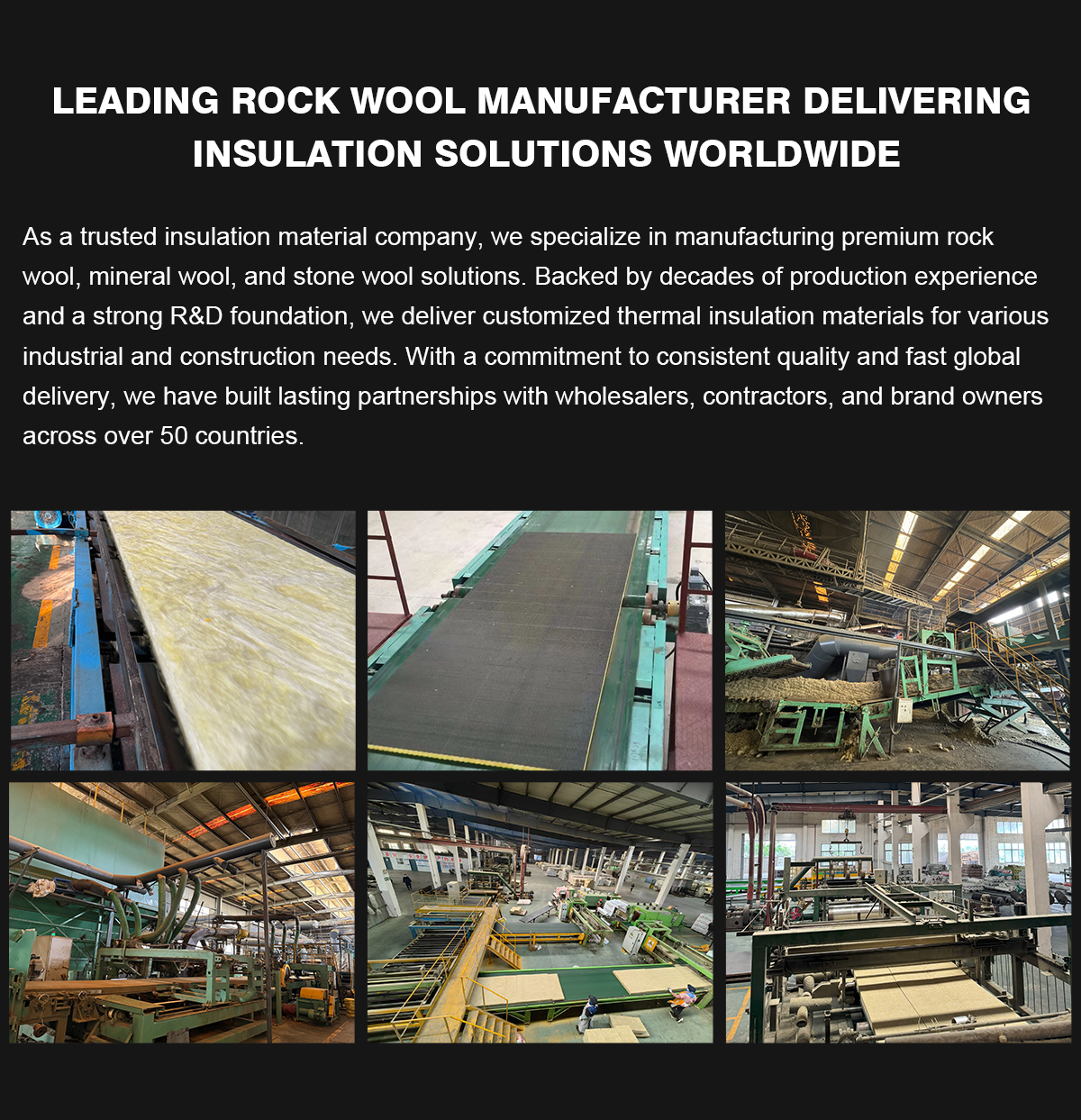

Testing and Packing

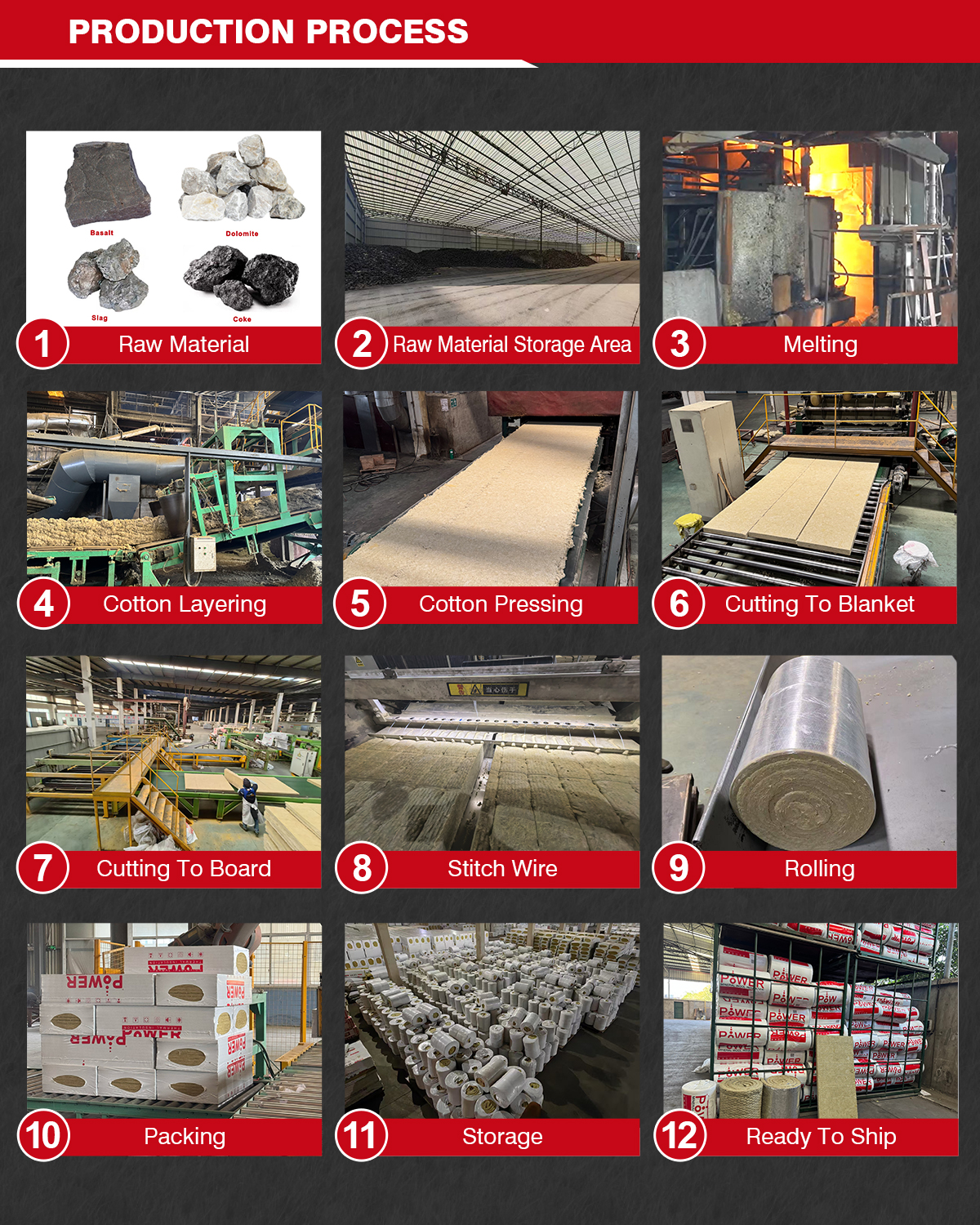

Warehouse and Logistics
Shipping and Loading
Contact banner
FAQ
How could I get a sample?
Before we received the first order, please afford the express fee. We will return the sample cost back to you within your first order.
What is the sample lead time?
For existing items, samples can be prepared and sent out within 3 working days.
Whether you could make our brand on your products?
Yes. We can design and print your brand on the packages if you can meet our Minimum Order Quantity (MOQ).
How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
3) We will provide you with a packing report when loading the products.
What is the maximum use temperature of the insulation?
The maximum use temperature is 750℃, which is verified according to the ASTM C411 standard.
Are custom sizes and specifications available?
Yes, we can customize width, thickness, and length based on your specific application and project requirements. Please feel free to consult us for tailored sizes.
