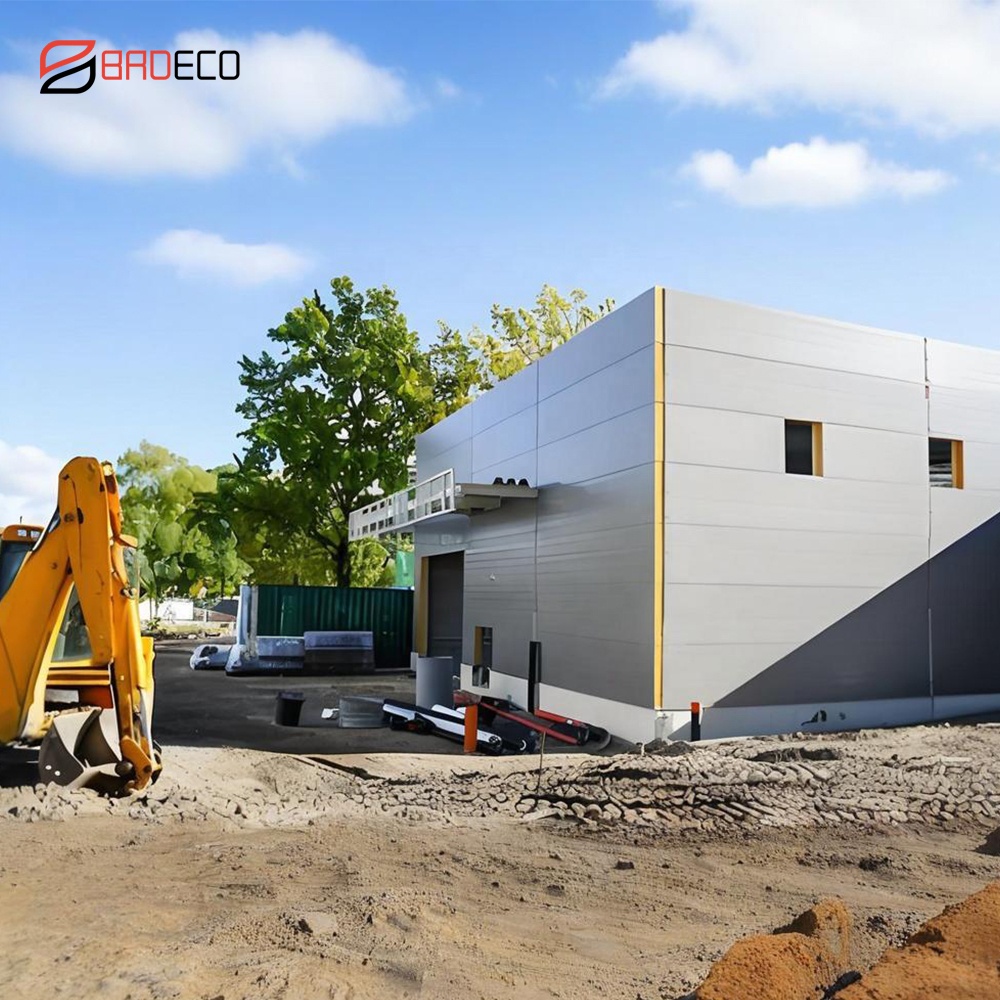

Rock wool wall sandwich panel is a composite building material that consists of a mineral wool core, derived from natural basalt rock, bonded between two structural facings, typically made of pre-painted steel or aluminum. Also known as stone wool or mineral wool panels. It is a high-performance, multifunctional building material that combines fire protection, thermal insulation, sound absorption, and load-bearing properties. Its Class A non-combustibility core property establishes it as an unshakable leader in building safety, making it an ideal choice for constructing safe, energy-efficient, modern industrial and commercial buildings.

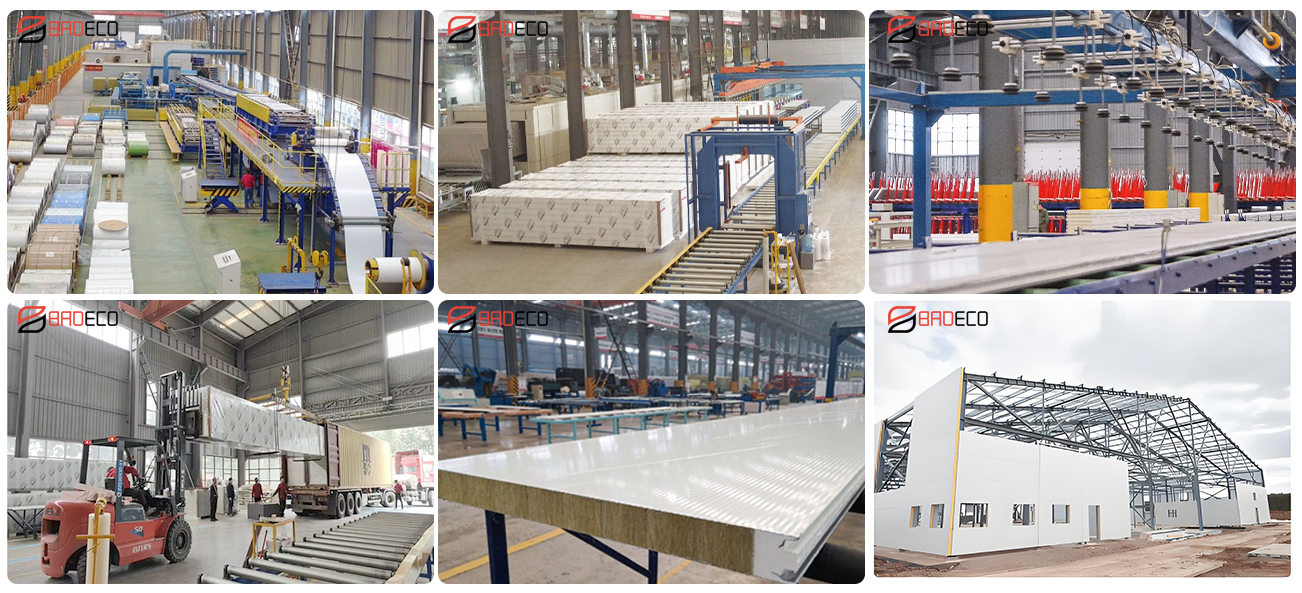

We have successively introduced Italy's fully automatic continuous production line Puma Line and Germany's KraussMaffei Line, which have the characteristics of high automation, high control accuracy, and high safety and stability. It can produce various types of continuous self foaming PUR/PIR/ROCKWOOL/GLASS WOOL steel sandwich panels of 5 million square meters per year, thereby completing customer orders with high quality and efficiency, meeting the personalized enclosure system construction needs of different customers in a one-stop manner.
| Parameter Specifications | |
|---|---|
| Standard Width | 1000mm |
| Length | ≤ 11800 mm |
| Surface Material | Coated steel |
| Surface Thickness | 0.35-0.7 mm |
| Coating | PE/SMP/HDP/PVDF |
| Core Material | Rock Wool (Mineral Wool) |
| Volume Weight | 100-150 kg/m³ |
| Thickness | 50-150 mm |
| U Value | ≤ 0.043 W/(m·K) |
| Fire Rating | CLASS A |
| Joint | Hidden fastening system |
| Process | Continuous production line |
| Surface Texture | Flat, orange grain, rib grain, corrugation, V8 corrugation |
Rock wool is non-combustible and can withstand temperatures exceeding 1,000°C without melting or producing significant toxic smoke. The panels are often rated Class A1, the highest European fire classification, making them ideal for high-risk and fire-rated applications.

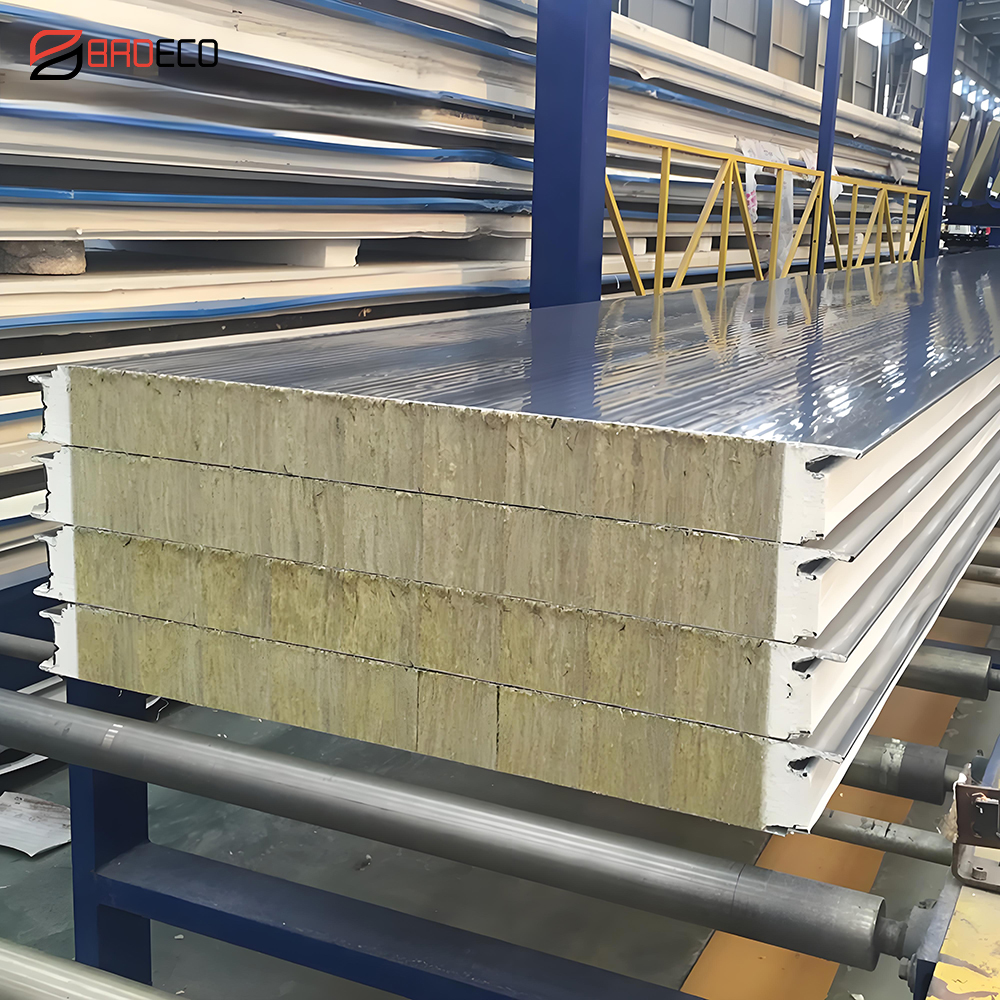

The dense, fibrous structure of the rock wool core effectively traps airborne noise and dampens vibrations. Panels can achieve significant sound reduction, making them suitable for buildings that require a quiet indoor environment, such as studios, hospitals, and schools.

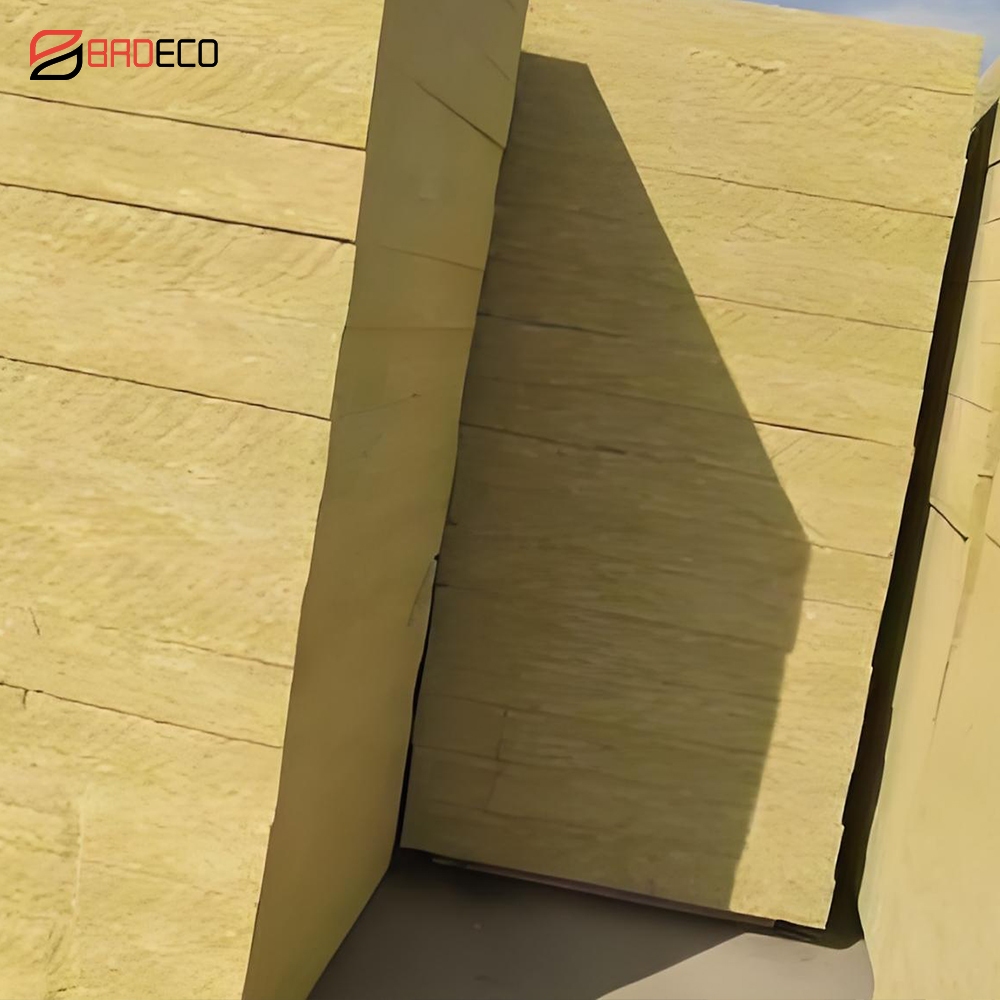

While not as insulative as polyurethane (PUR) foam, rock wool provides excellent thermal insulation. This helps regulate indoor temperatures, improving energy efficiency and reducing heating and cooling costs.
The strong metal facings protect the rock wool core, making panels resistant to extreme weather conditions, temperature fluctuations, and corrosion. The inorganic nature of the rock wool also provides resistance to moisture, mold, and rot.

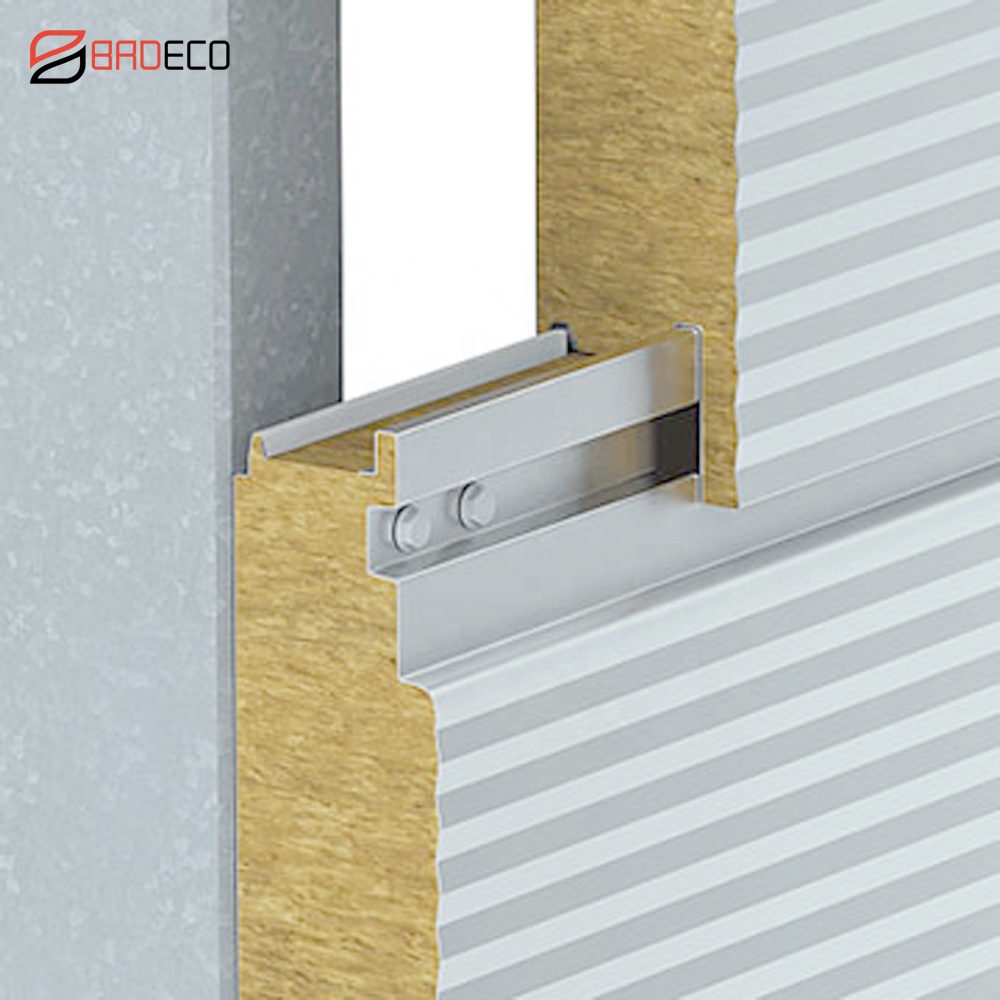

Adopting concealed fixing system and special thermal break anchor penetrating locking, it greatly weakens the heat conduction path, ensures thermal insulation continuity and improves the overall energy efficiency of the wall.

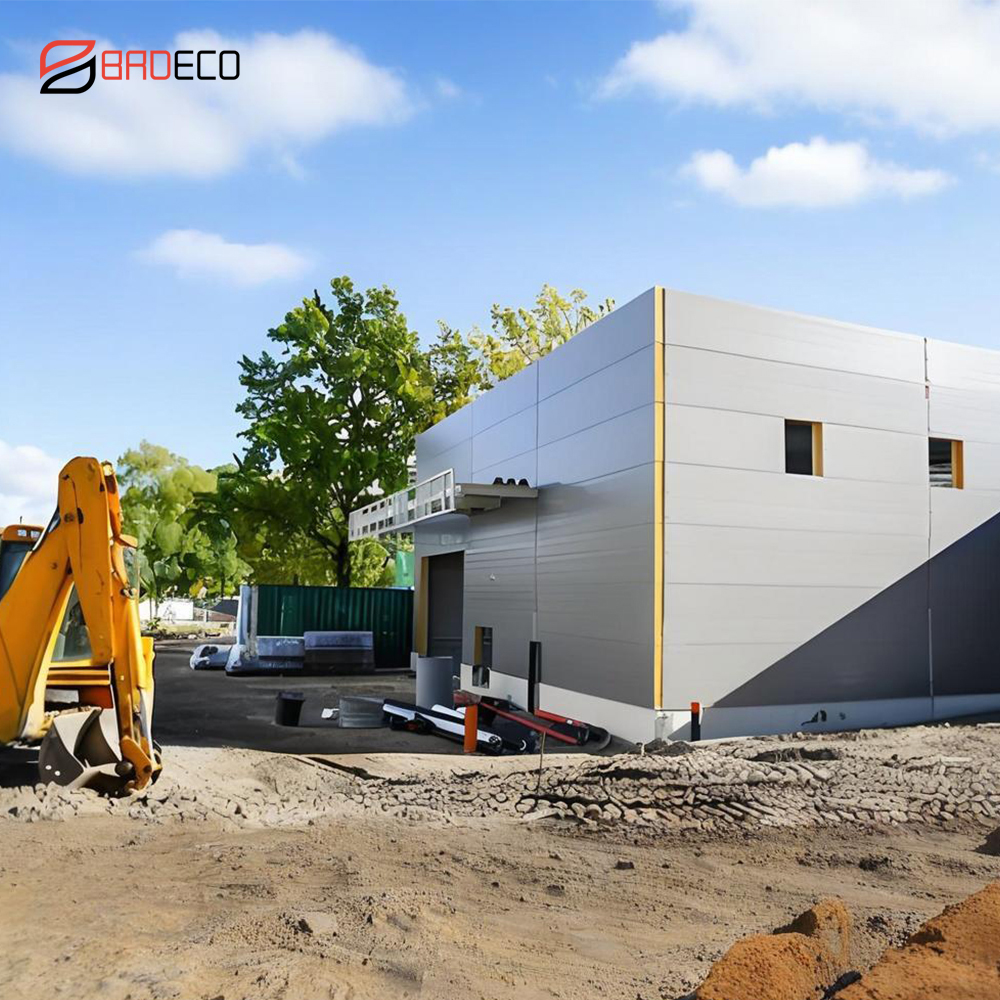

As a prefabricated, single-component system, rock wool panels are easy and quick to install. This saves on construction time and labor costs compared to conventional multi-layer insulation systems.

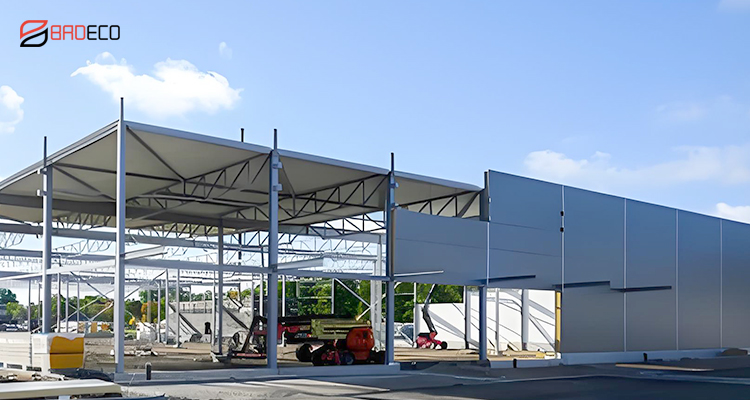

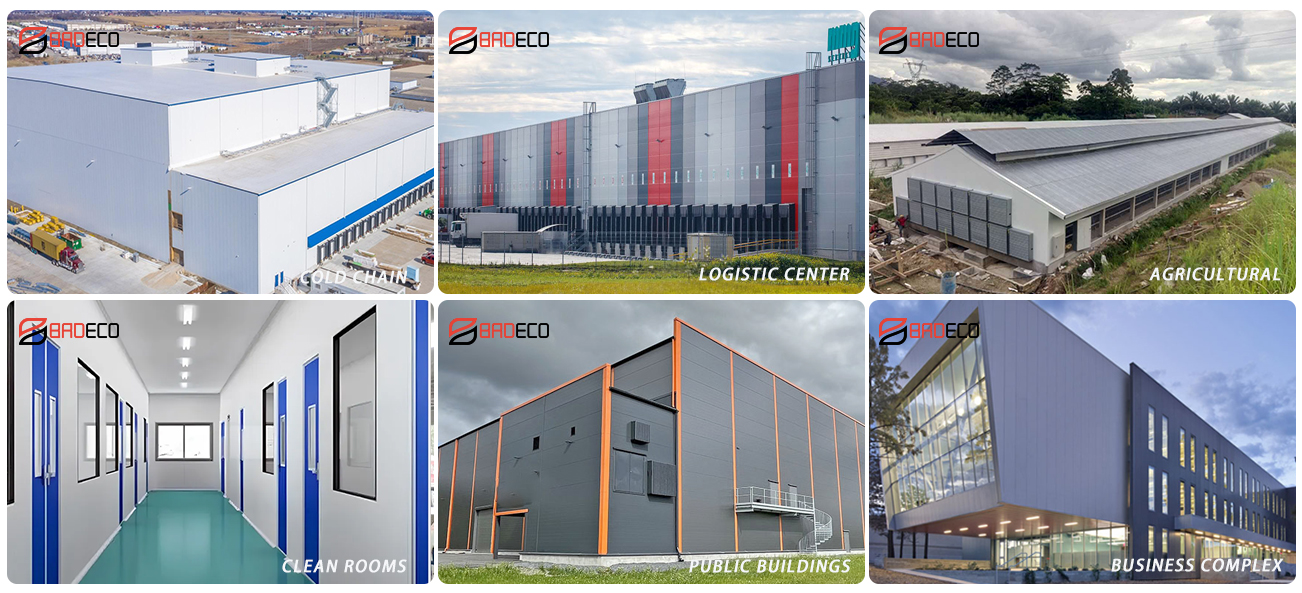

Rockwool sandwich panels, with their exceptional fire resistance and thermal insulation properties, have become an indispensable core material in modern construction. They are primarily used in building envelope systems for industrial plants, logistics warehouses, cold chain facilities, and other structures where safety and energy efficiency are paramount. They also play a vital role in large public buildings like stadiums and exhibition centers. This composite panel seamlessly integrates multiple functions, including thermal insulation, fire safety, and structural support, providing an integrated, efficient solution for industrial buildings, commercial spaces, and specialized applications.
Our sandwich facade products are highly innovative in terms of material structure, system design, and manufacturing processes. Its advanced prefabricated building design concept allows the advantages of standardized design, factory processing and modular construction to be fully utilized. Please contact us for more information on the sandwich facade systems.
Over 17,000 successful project cases. We have a professional design team equipped with high-standard equipment to provide solutions according to customer needs.
Project Time: 2024
Project Location: Johor, Malaysia
Project Scale: 50,000 square meters
Product Specification: Steel structure + Rockwool Panel
Project Time: 2024
Project Location: Johor, Malaysia
Project Scale: 20,000 square meters
Product Specification: 100mm Polyurethane Sealing Rockwool Panel
Project Time: 2024
Project Location: Pontian, Johor
Project Scale: 40,000 square meters
Product Specification: Interior cleanroom panels + Metal rock wool sandwich exterior wall panels
Project Time: 2024
Project Location: Kuala Lumpur
Project Scale: 8,000 square meters
Product Specification: Clean sandwich panels + Polyurethane edge-sealed rock wool panels
Project Time: 2025
Project Location: Port Dickson, Negeri Sembilan
Project Scale: 60,000 square meters
Product Specification: Steel structure + roof panel + wall panel
Project Time: 2025
Project Location: George Town
Project Scale: 200,000 square meters
Product Specification: Clean panels + pu edge-sealed rock wool panels
Our company was founded in 2011. It is a national high-tech enterprise specializing in the research, development, manufacturing, and service of green, energy-saving, and environmentally friendly new materials. Our main business focuses on the following key areas: Cold storage and industrial insulation materials, Integrated decorative and insulation panels, Other mainstream international green, energy-saving, and environmentally friendly new materials.
Corporate Vision: Building a better world, making life more comfortable for people and architecture on Earth.
Corporate Mission: To be the world’s most beautiful factory, creating products and nurturing talent, achieving both spiritual and material prosperity for employees. To provide professional and systematic brand services for customers, complement strengths with peers, and coexist harmoniously. To save energy and contribute to society through public welfare.
We offer world-leading intelligent, fully automated workshops, including the German Klaus Maffei production line, Italian fully automatic continuous production line Puma line, Korean automatic cutting line, Italian OMS company's 14 meter extended feeding system, wiring PIR hook plate cyclopentane foaming system, etc. Please send us an inquiry for an in-depth discussion.
We have built 10 product lines, 3 automatic polyurethane energy-saving panel production lines, 3 automatic clean room panel production lines, 3 fully automatic insulation integrated panel production lines, 1 curtain wall aluminum plate production line. The annual production capacity is about 30 million square meters.
The company employs nearly 500 staff members, including 50 R&D personnel. The company has established six major manufacturing bases and operates 10 domestic business centers and 6 overseas business centers. It also features standard laboratories.
We have served over 17,000 domestic and foreign customers. Promoting the intensive use of social resources through the innovation and circulation of industrial products. Committed to being a respected and sustainable business.
Our sandwich composite panel selects high-quality raw materials combined with mature panel type and scientific installation details design, to create a multi-purpose sandwich panel that features outstanding fire resistance, heat preservation, watertightness, weatherability, wind resistance, pressure resistance, as well as sound absorption and insulation, so as to meet the personalized requirements of the client.
