As a trusted Aluminum Honeycomb Composite manufacturer, we’re expanding worldwide and invite distributors, agents, and buyers to collaborate with us! Agents enjoy 15% off first order + territory protection + annual bonuses, while bulk buyers save 10% on 500+㎡ orders with free shipping.

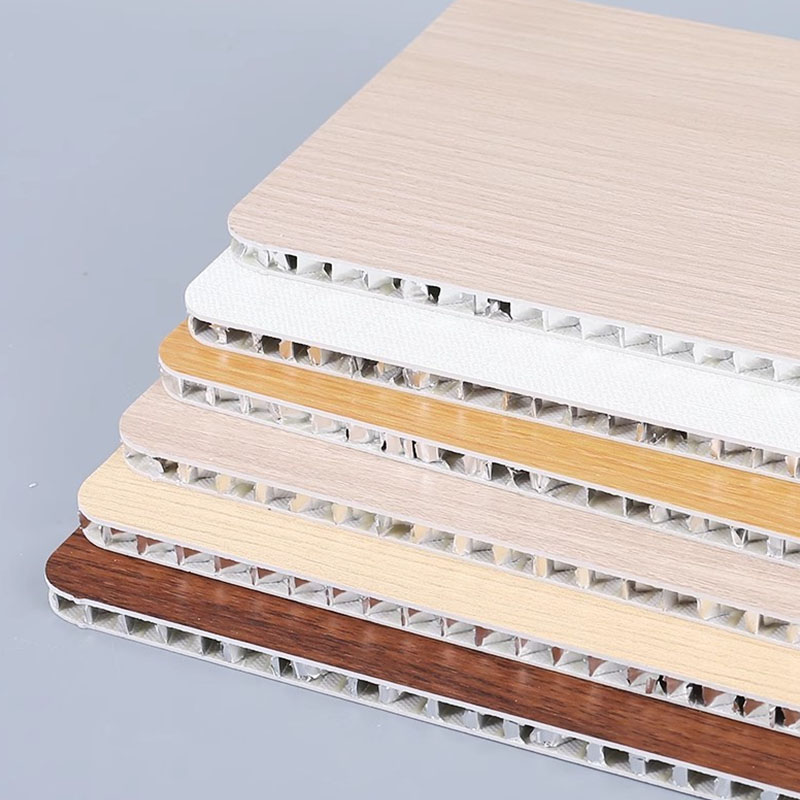

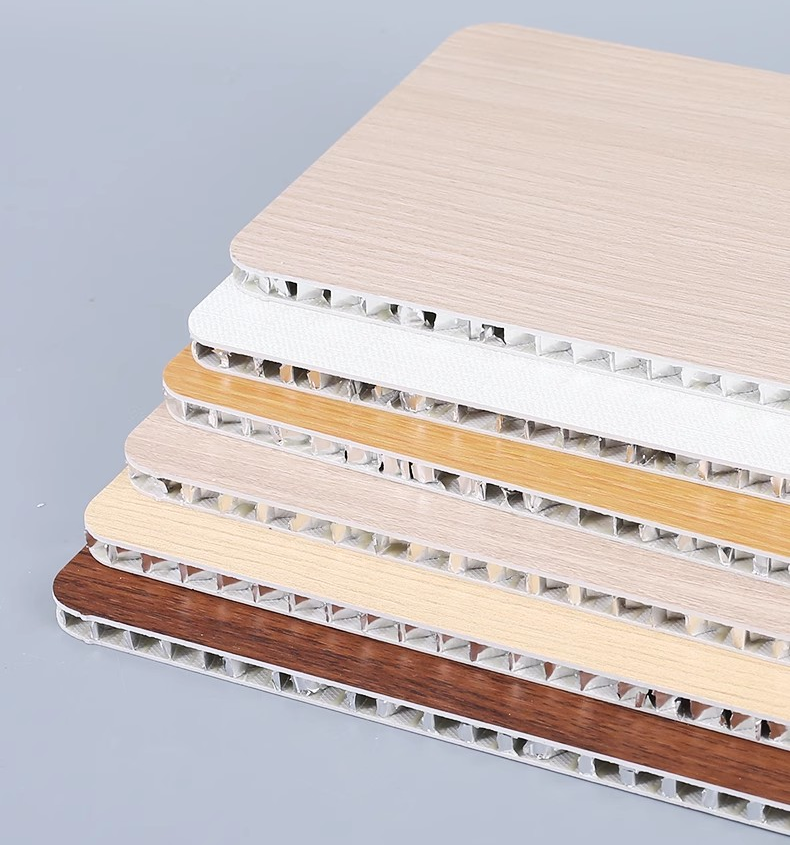

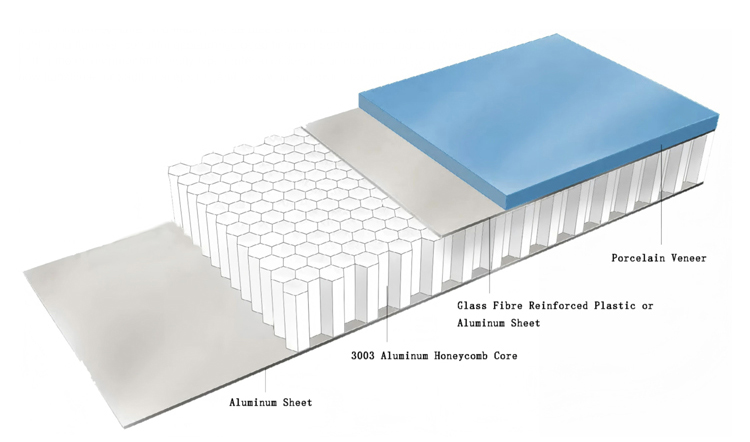

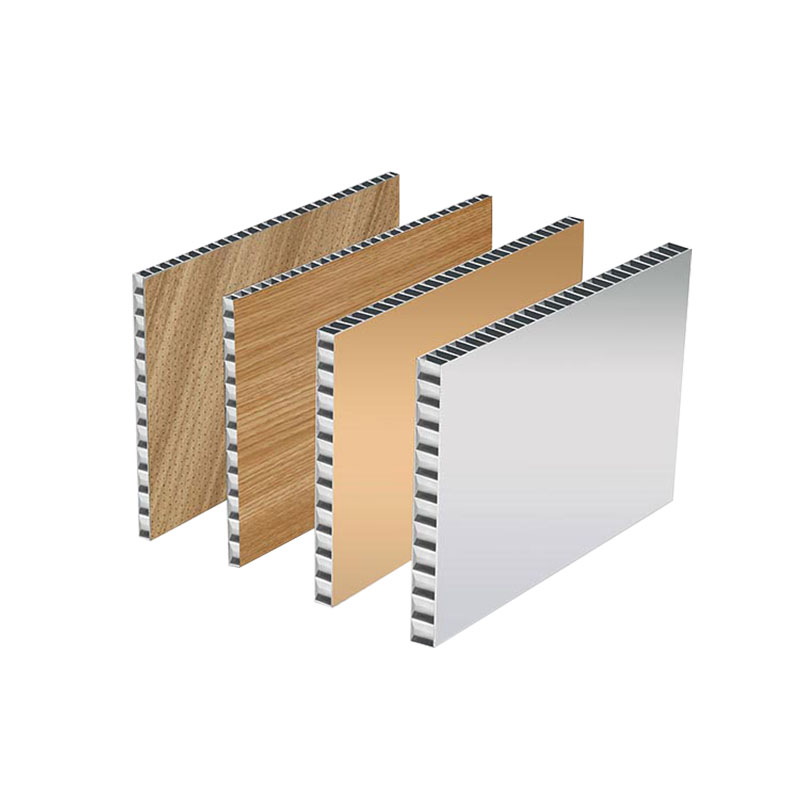

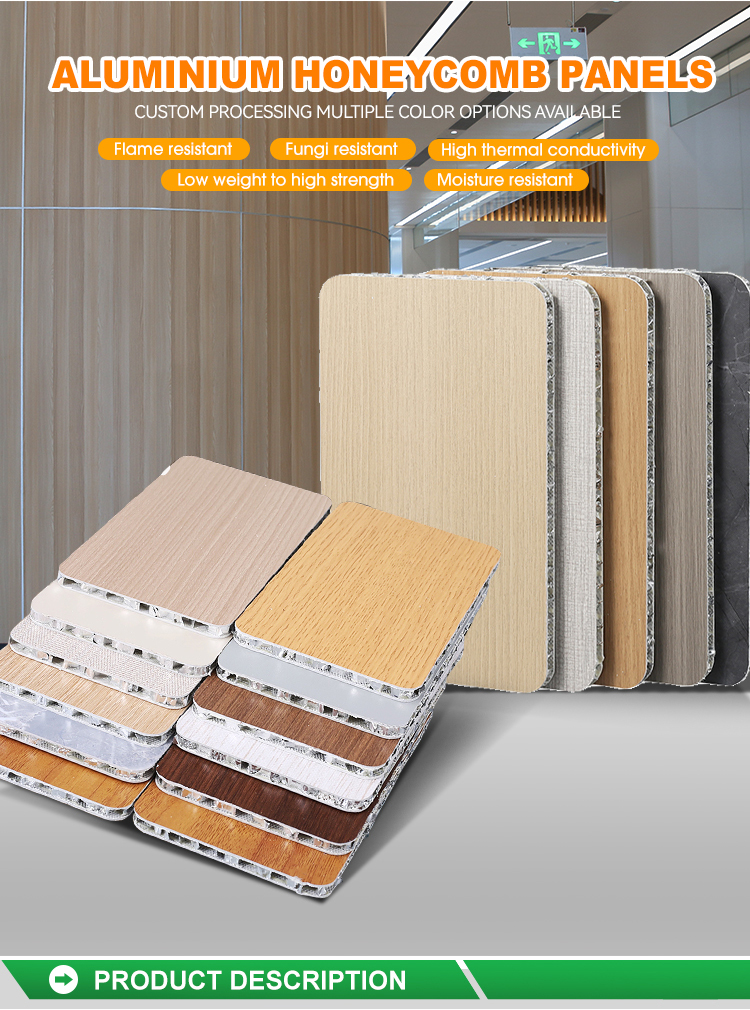

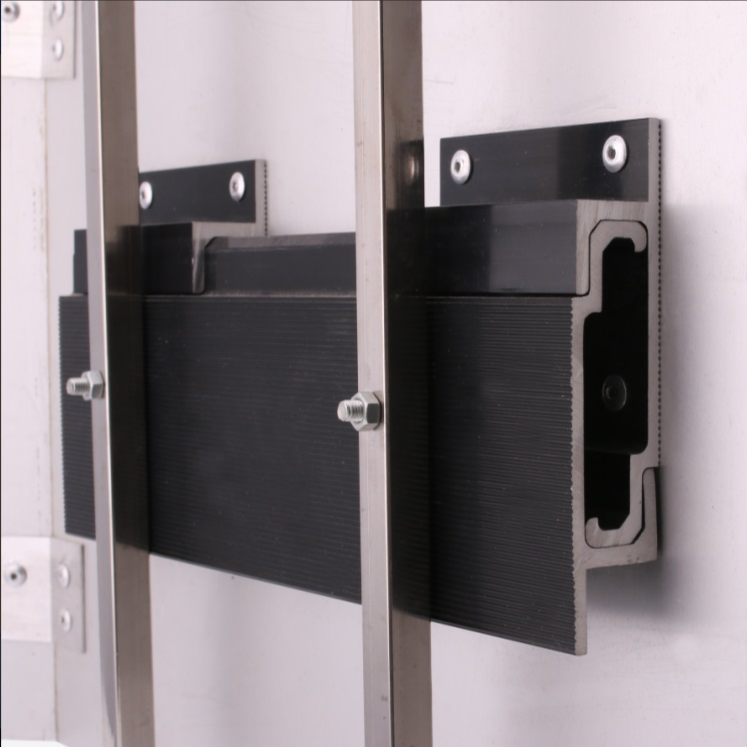

The aluminum honeycomb panel is composed of a hollow supporting board and a decorative panel. The feature is that the hollow supporting board adopts an aluminum honeycomb core board, and is compounded on both sides of the aluminum honeycomb core board with an adhesive aluminum alloy plate, and finally, the surface is laminated with a decorative panel. It has light weight, good flatness, beautiful appearance, good fireproof performance and convenient installation. It is the environmental friendly type material especially promotion to clean workshops, which is now substitute for traditional eps, PU and rock wool sandwich panels.
| Panel thickness | 10mm, 15mm, 20mm, 25mm, 50mm (customized thickness from 5mm up to 100mm) |
| Panel width | 1000mm, 1220mm, 1500mm (customized width with max 2000mm) |
| Panel length | 2440mm, 3200mm, 4000mm, 5800mm (customized length as required) |
| Aluminium skin thickness | 0.5mm, 0.7mm, 0.8mm, 1mm (or as required) |
| Honeycomb core | A6*0.05, A4*0.05, A9*0.05 (or as required), or PP honeycomb core |
| Aluminium alloy | 3003 for both aluminium skins & honeycomb core |
| Coating technology | Pre-painted roller coating |
| Coating type | PVDF, FEVE, PE, Anodized, PVC film laminated |
| Color options | Mill finish, metallic colors, solid colors, wooden colors, stone colors, anodized color |
| Shape | Flat panel, curved panel, shapes to be fabricated as per drawing |
| Panel edge | Standard open edge, closed edge, customized edges embedded with aluminium extrusions |
| Fabrication | Fabrication or cutting service as per drawing upon request |

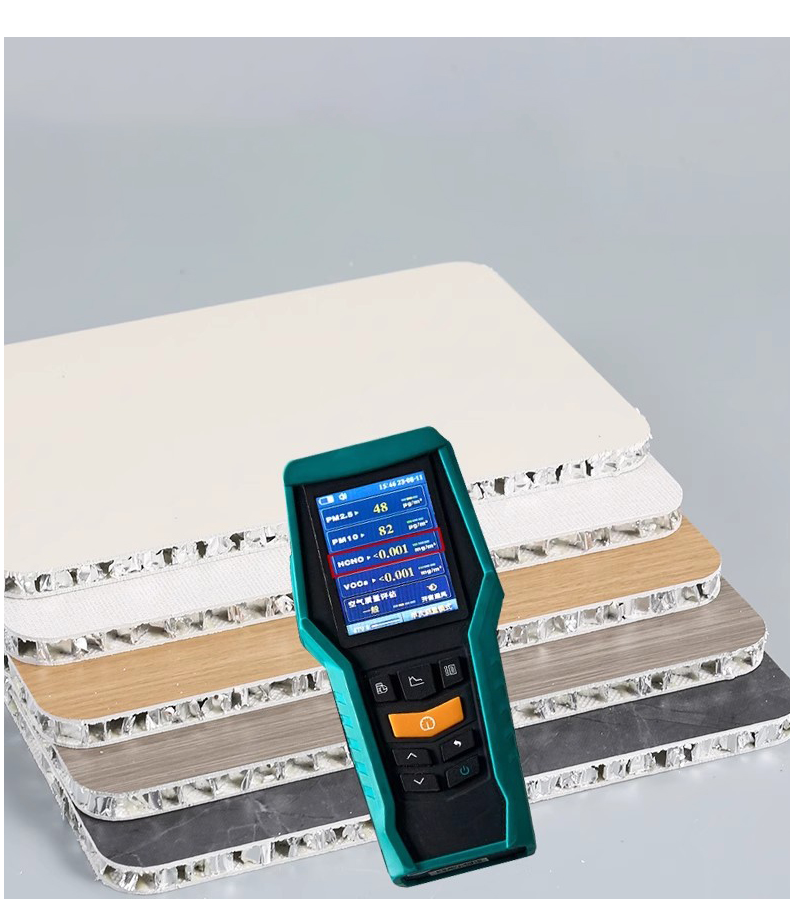

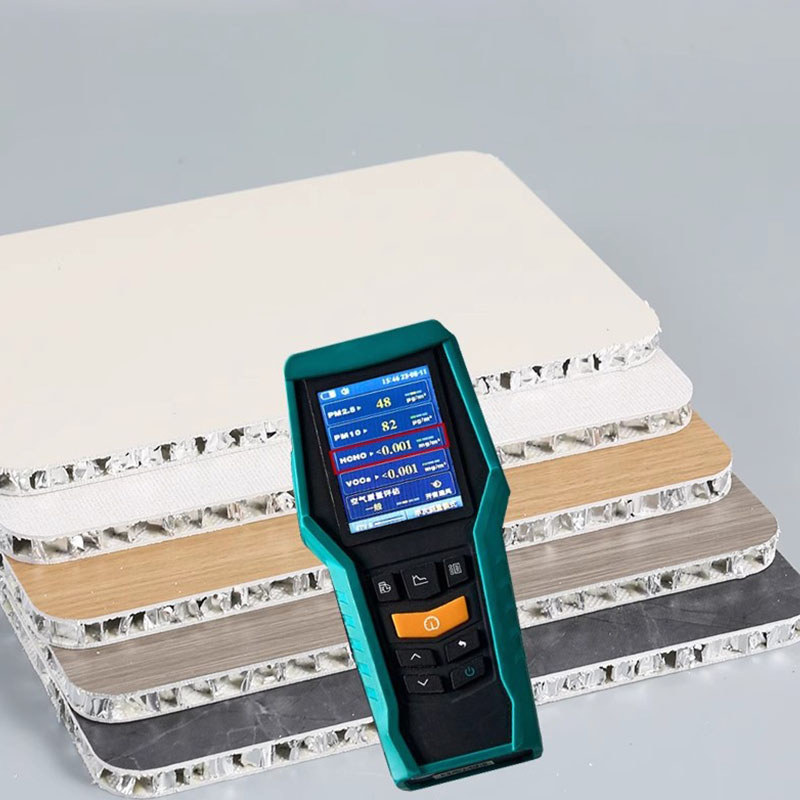

The material is non-toxic and harmless, and does not contain formaldehyde.

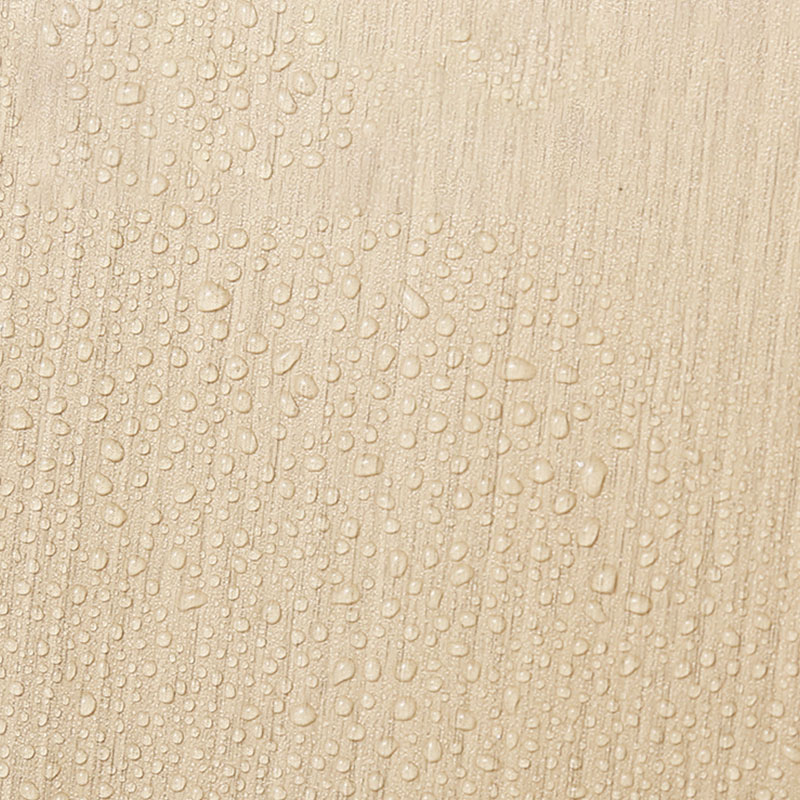

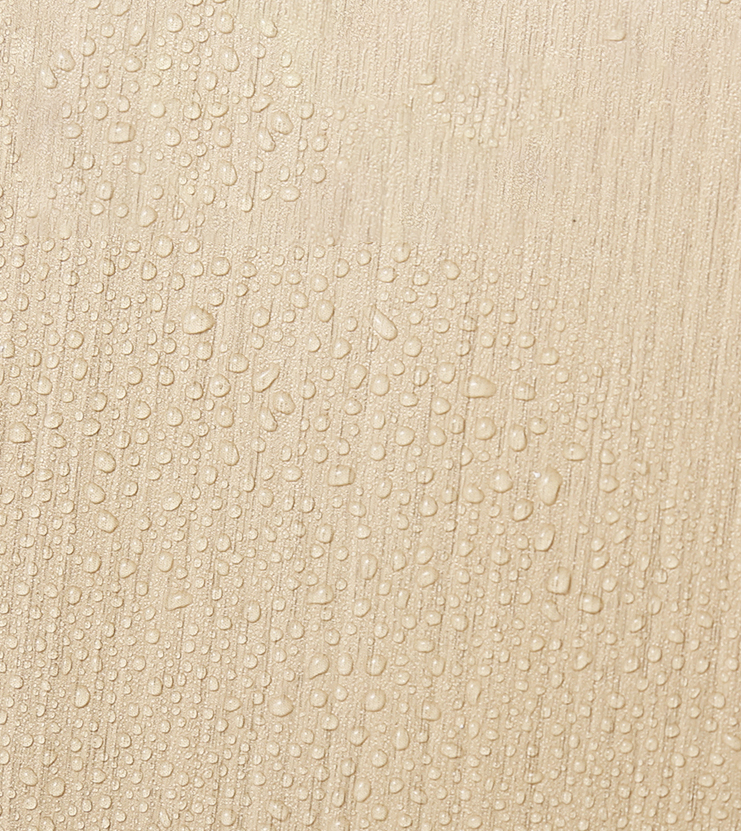

The structure is dense and resistant to penetration, waterproof and moisture-proof.

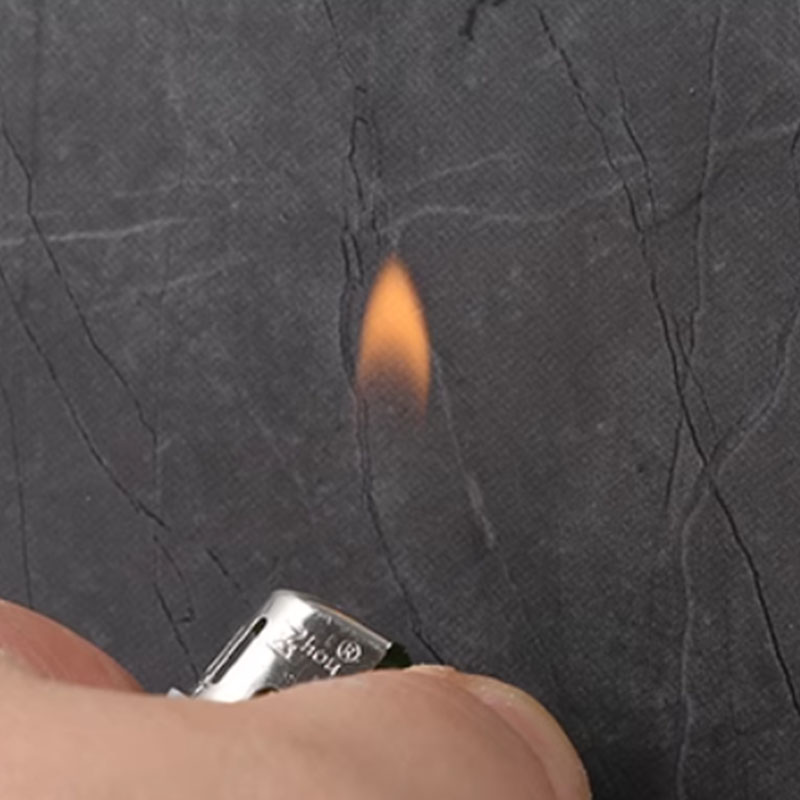

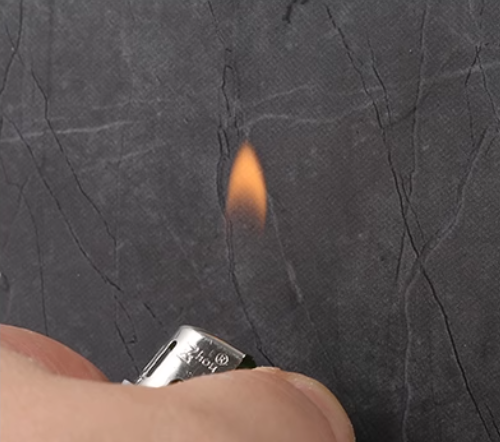

The spc layer extinguishes itself when exposed to fire, and the aluminum honeycomb core has a high melting point.

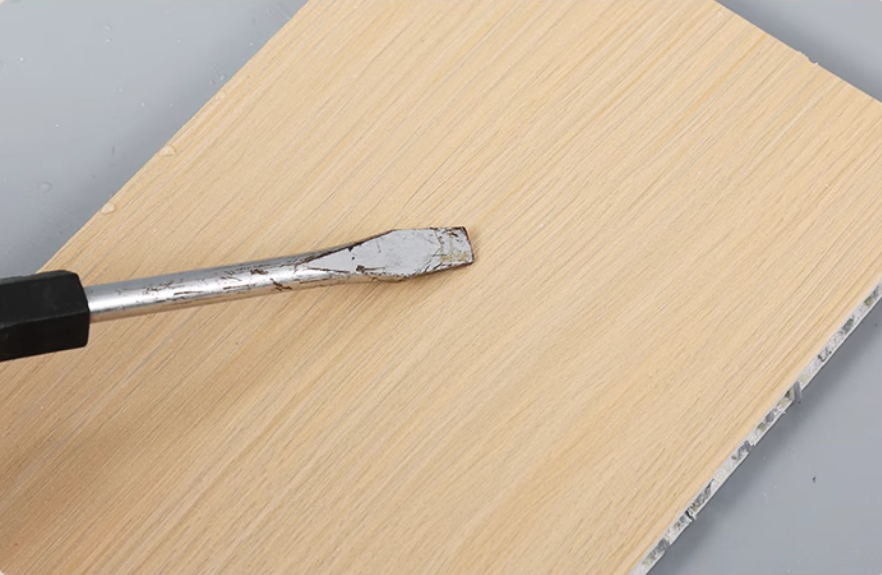

The surface UV coating can resist scratches from hard objects and will not leave marks when used frequently.
The material is non-toxic and harmless, and does not contain formaldehyde.
The material is non-toxic and harmless, and does not contain formaldehyde.

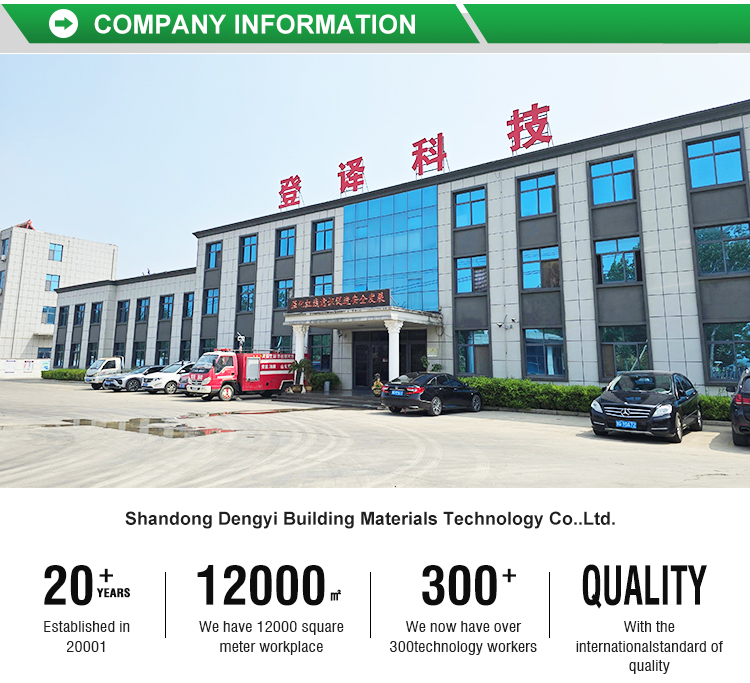

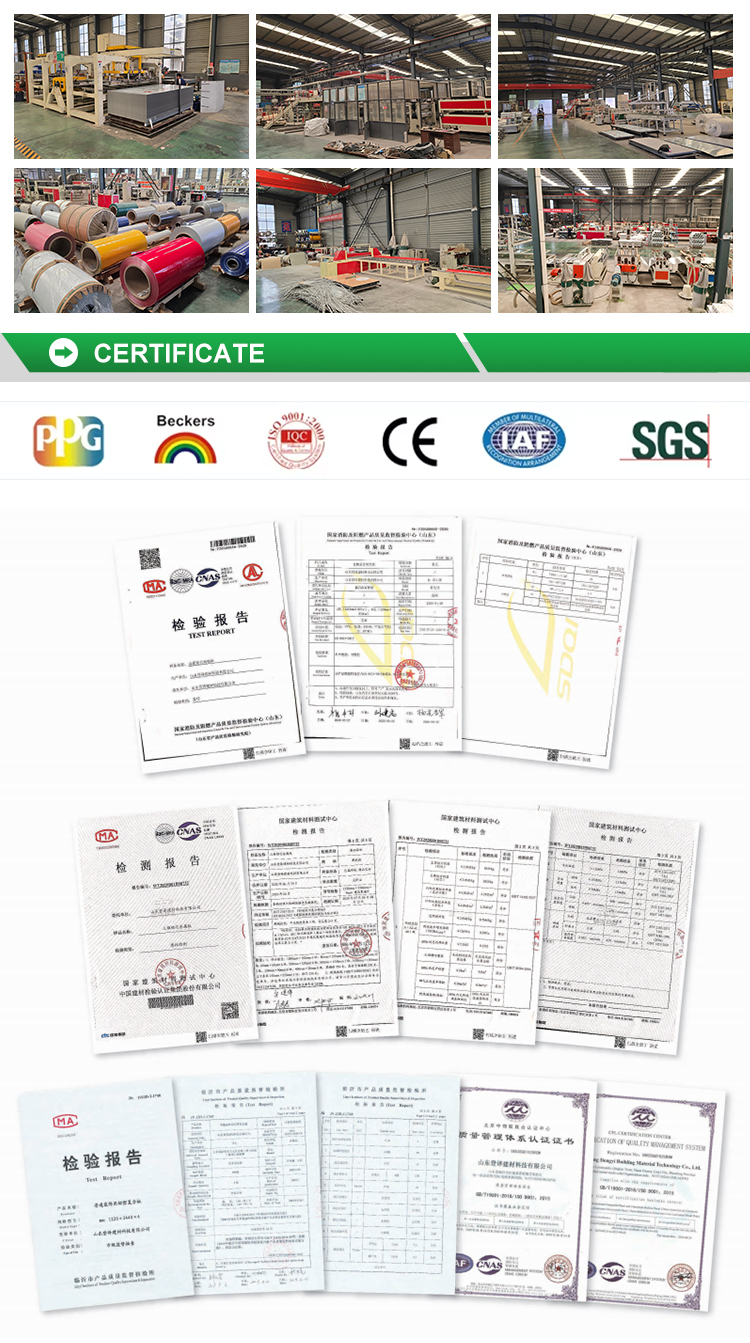

We are a professional manufacturer of high-grade aluminum core metal composite board, located in the capital of logistics in China. Founded in 2001, we have been focusing on the production of various engineering aluminum-plastic composite panels including conventional aluminum-plastic panels, imitation wood (stone) aluminum-plastic panels, mirror aluminum-plastic panels, wire drawing aluminum-plastic panels, pearlescent paint aluminum-plastic panels, high-gloss aluminum-plastic panels, which have been favored by the majority of engineers and designers. Since 2016, we have been committed to the innovative production and manufacturing of high-grade aluminum core metal composite board, focusing on the industry for more than 10 years. Our products are a well-known choice of aluminum core metal composite plate for indoor and outdoor decoration. We are specialized in the production of A2 fire-proof three-dimensional aluminum core metal plate, three-dimensional aluminum core metal plate, aluminum core honeycomb metal plate, A2, B1 fireproof metal composite decorative plate, aluminum plastic composite plate and other metal technology composite plates.
We have the first domestic three-dimensional aluminum core metal composite board production line. The A2 grade fireproof three-dimensional aluminum core metal plate has the characteristics of light, thin, strong and ultra-high flatness. We cooperate with world-famous decorative film brands to innovate and develop the surface coating technique, and produce three-dimensional coated aluminum core metal plate, coated aluminum core honeycomb metal plate and coated metal composite decorative plate with a wide range of varieties. It provides perfect solutions for the decoration design and construction of high-end interior walls and ceilings.
