Company Profile
Our projects and products serve domestic and overseas customers across the world.
Thousands of completed cold room projects and commercial refrigerators dealing with 40 countries and more.
Our main overseas market is available for reference.
Application
Our refrigeration solutions cater to a wide range of industries:
- Cold Storage / Cold Room setups (incorporating PU panels, XPS flooring, and compressor condensing units)
- Hotels, restaurants, hospitals, blood banks, poultry slaughterhouses, aquaculture, and mushroom cultivation facilities
- Pharmaceutical processing and logistics, beverage production and processing storage, beer production, and specialized cooling cold storage
- Large-scale logistics storage, injection molding, machine cooling, chemical product cooling, and medical application areas
Main Components Specifics

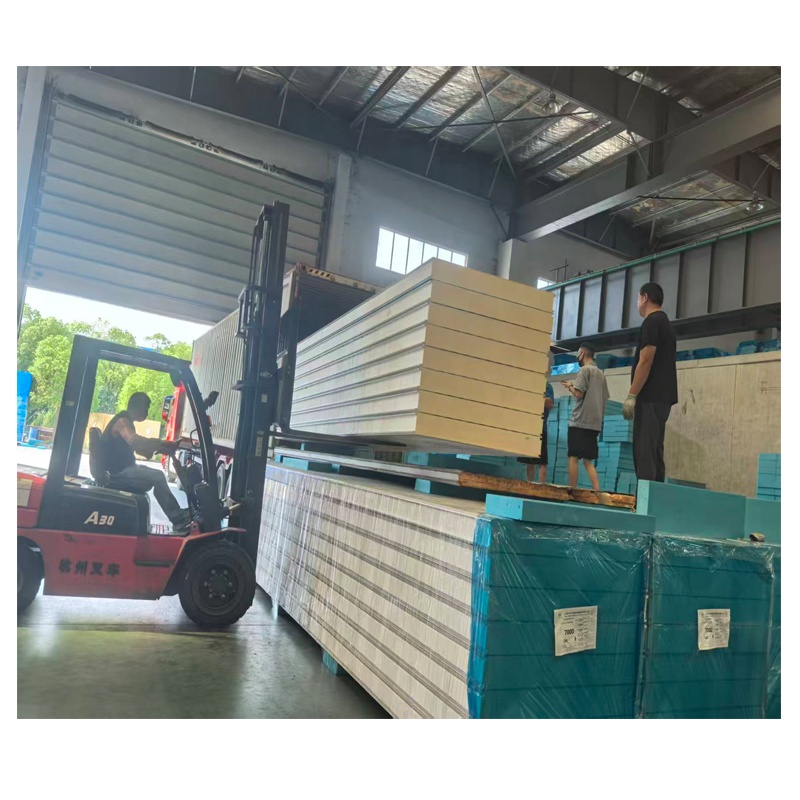

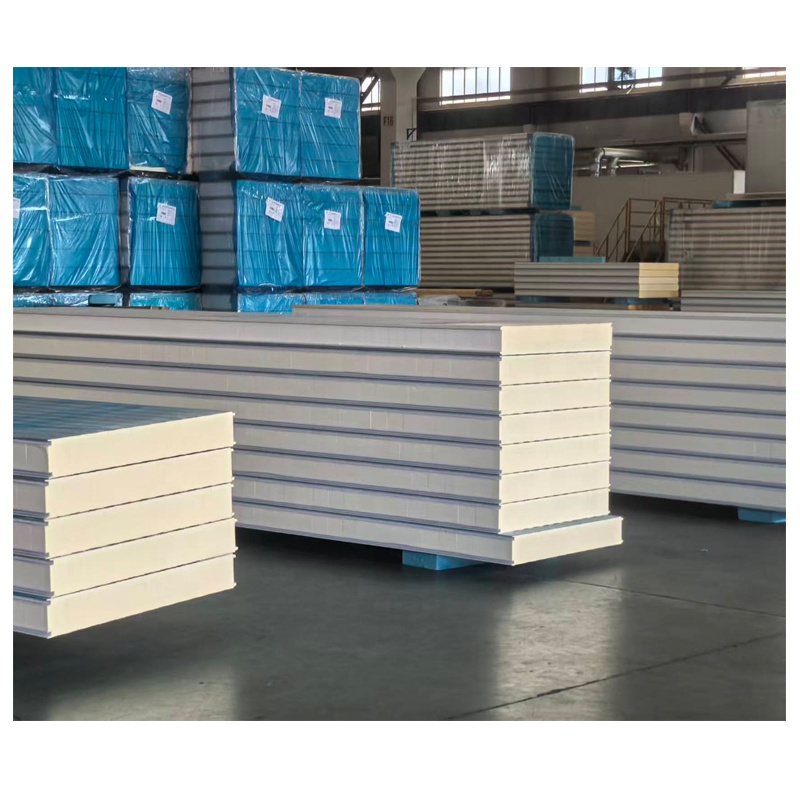

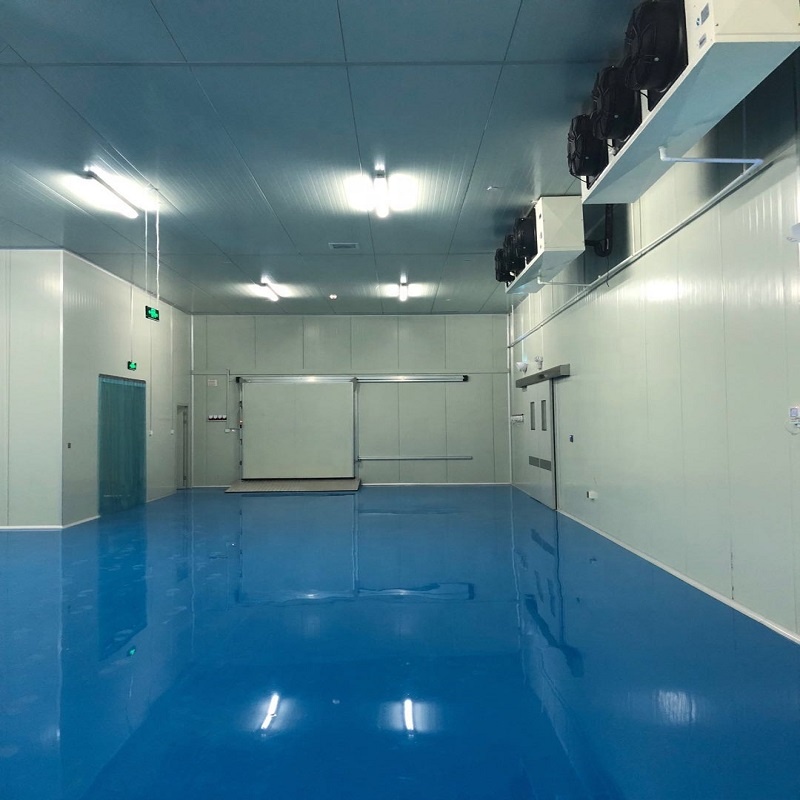

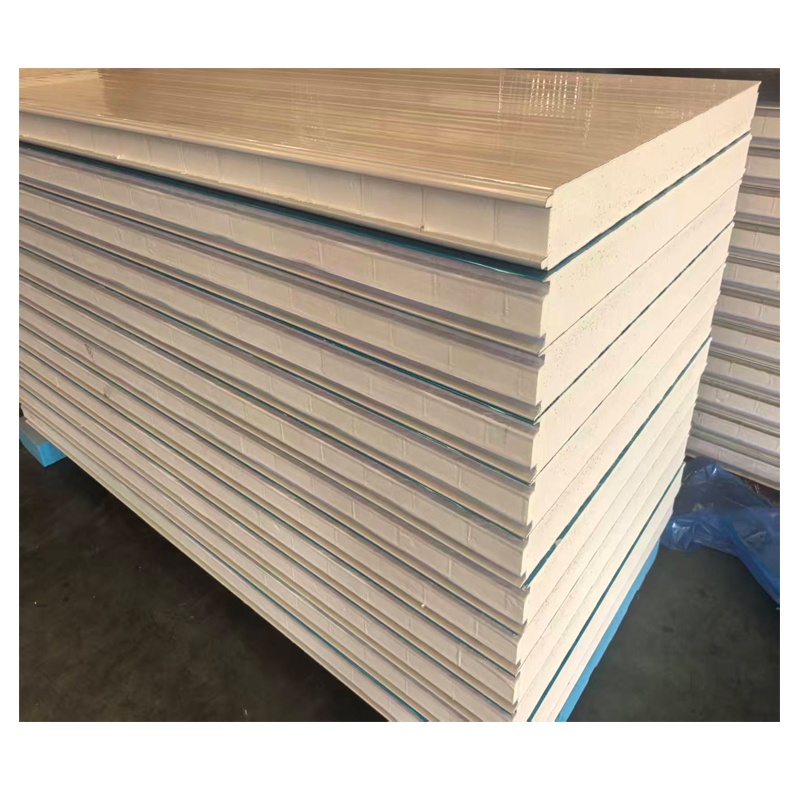

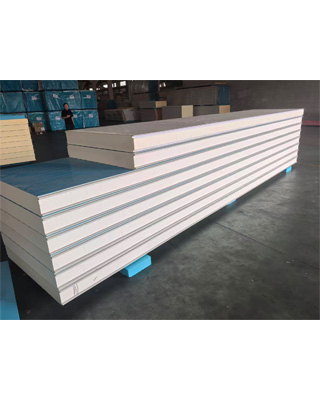

Cold Storage Structure: PU and PIR Insulated Panels
Our cold rooms are constructed using polyurethane (PU) and polyisocyanurate (PIR) sandwich panels. These panels offer exceptional heat insulation and high structural strength, effectively reducing heat transmission losses caused by differences in internal and external temperatures.

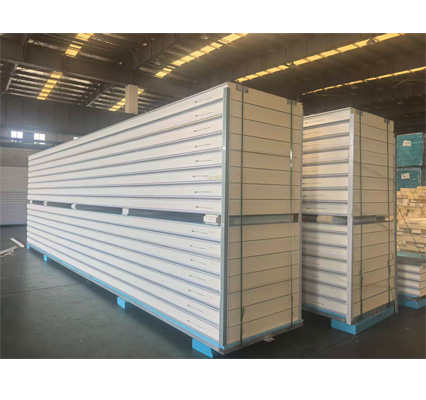

PU & PIR Insulation Panel Features
- Fire proof grade: B1-B2 grade
- Certification: FM certification and ISO 9001
- Waterproof: absorption rate < 4%, density of 40-42 kg/m³
- Thickness: 50mm, 100mm, 150mm, 200mm with two sides 0.426mm or 0.5mm color steel or stainless steel
- Material: Polyurethane Panel (B1 / B2), environmentally friendly
- Door Options: Swing doors, sliding doors, and hinged door configurations
| Specification |
Details |
| Panel Type |
PU sandwich panel or PIR sandwich panel |
| Material |
Polyurethane foam interior with outer color steel, stainless steel, or aluminum sheet |
| Thickness |
50 mm / 100 mm / 150 mm / 200 mm |
| Panel Length |
Commonly under 12 meters (tailored to container dimensions) |
| Density |
42 kg/m³ |
| Fire Retardant |
B1 or B2 grade |

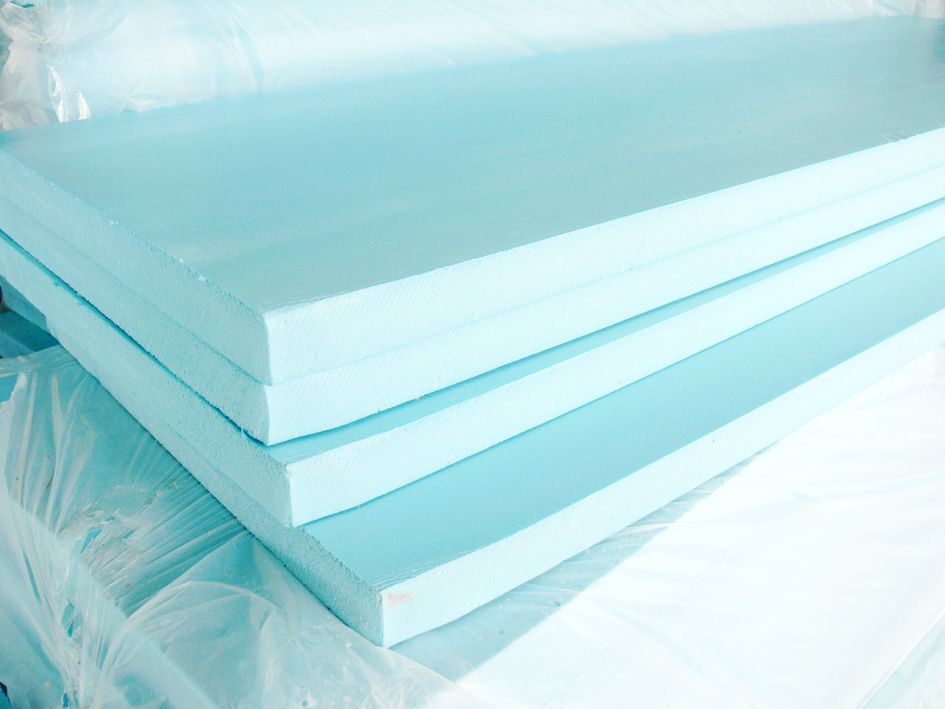

XPS Panel (Extruded Panel Description)
Cold Storage XPS Flooring Panel
- Flooring uses 50 mm thickness
- 2 and 3 layer XPS extruded board, cross-placed design
- Class B2 or B1 flame retardant properties
- Compressive strength ≥ 350 kPa
- Excellent heat preservation and thermal insulation

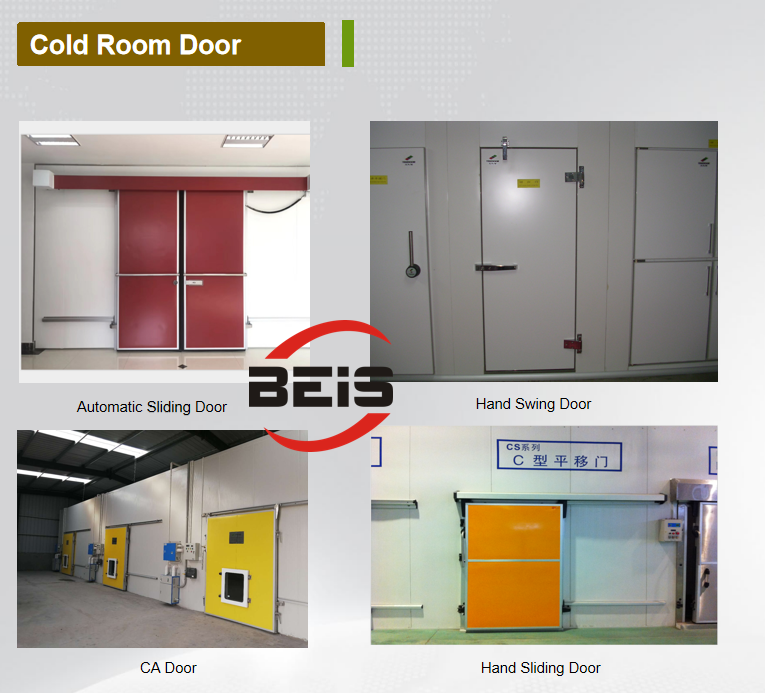

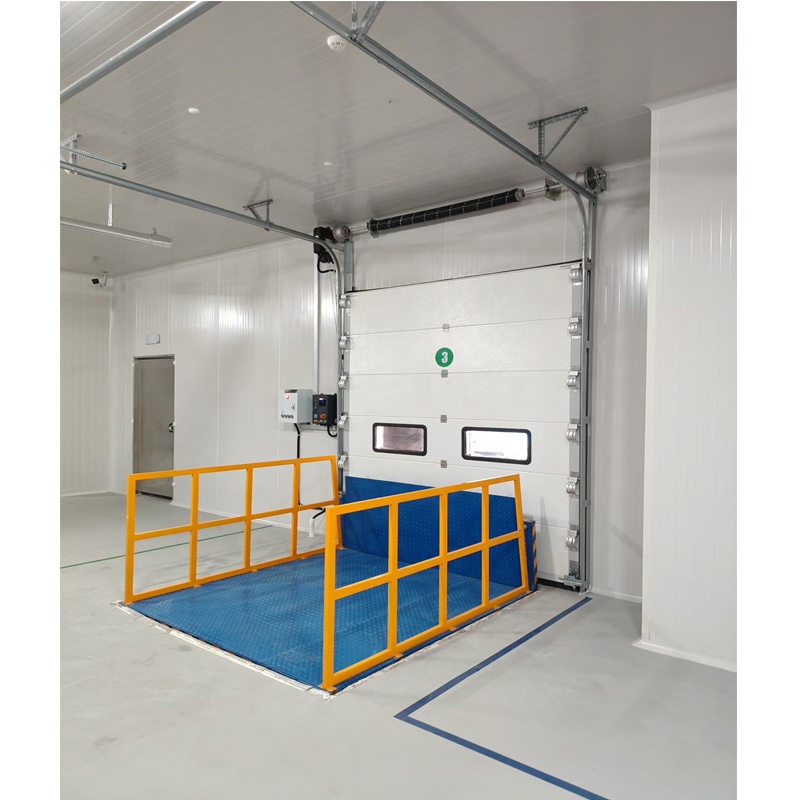

Cold Room Doors
Our cold room door selections include several standard series:
- Manual and automatic operational configurations
- Opening styles: Swing doors, sliding doors, and controlled atmosphere (CA) doors

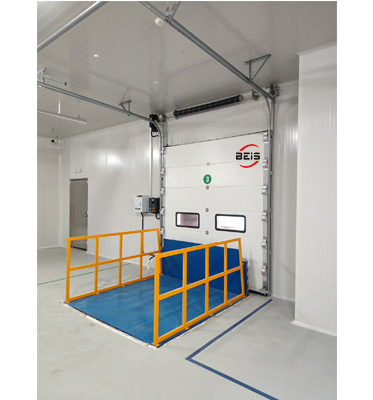

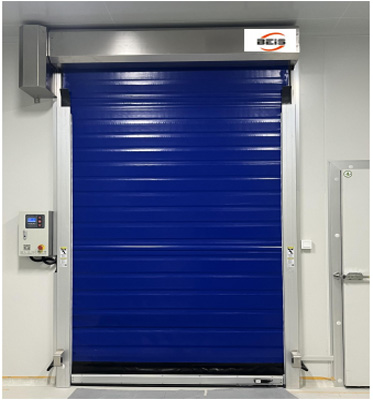

High-Speed Cold Storage Doors / Rapid Doors
| Product Specification |
Details |
| Product Name |
High Speed Cold Storage Doors / Rapid door |
| Function |
Excellent sealing to limit cold air loss and enhance energy savings |
| Applicable Temperature |
Down to -35 degrees Celsius |
| Maximum Size |
Customized to requirements |
| Other Functions |
Simple-interlock integration |
| Applicable Area |
Indoor areas for factory cold rooms and cold storage |
| Curtain Material |
PVC double-layer coating wear-resistant base fabric (0.9mm, 1mm, 10mm options, customized) |
| Door Frame |
2.0mm thick cold plate with electrostatic spraying (fade-resistant, peel-resistant) |
| Switch Mode |
Standard push-button box |
| Sealing Performance |
Cassette base double-row brushes to prevent insects and dust; low maintenance requirement |
| Thermal Insulation |
Double-layered curtains with customizable viewing windows |
| Voltage |
220V / 380V / 415V / 480V, 50Hz / 60Hz |

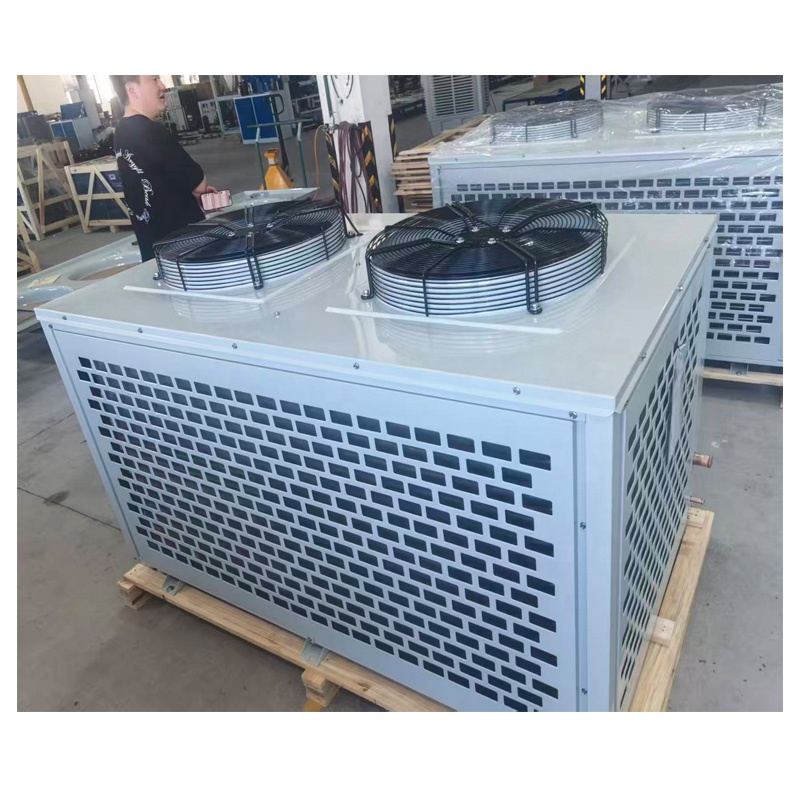

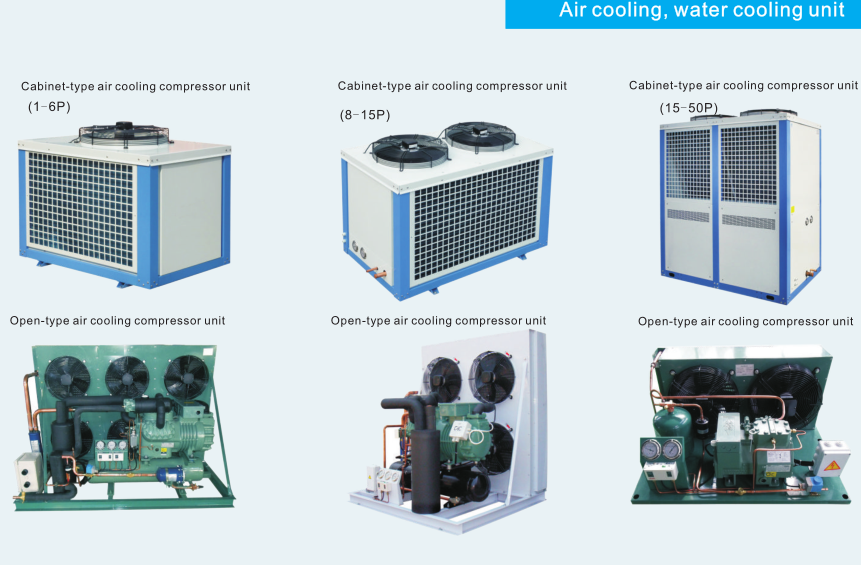

Compressor and Evaporator
We supply high-efficiency condensing units utilizing German Bitzer, American Copeland, Tecumseh, Italian Frascold, and other industry-leading compressor and evaporator brands, depending on specific project parameters.

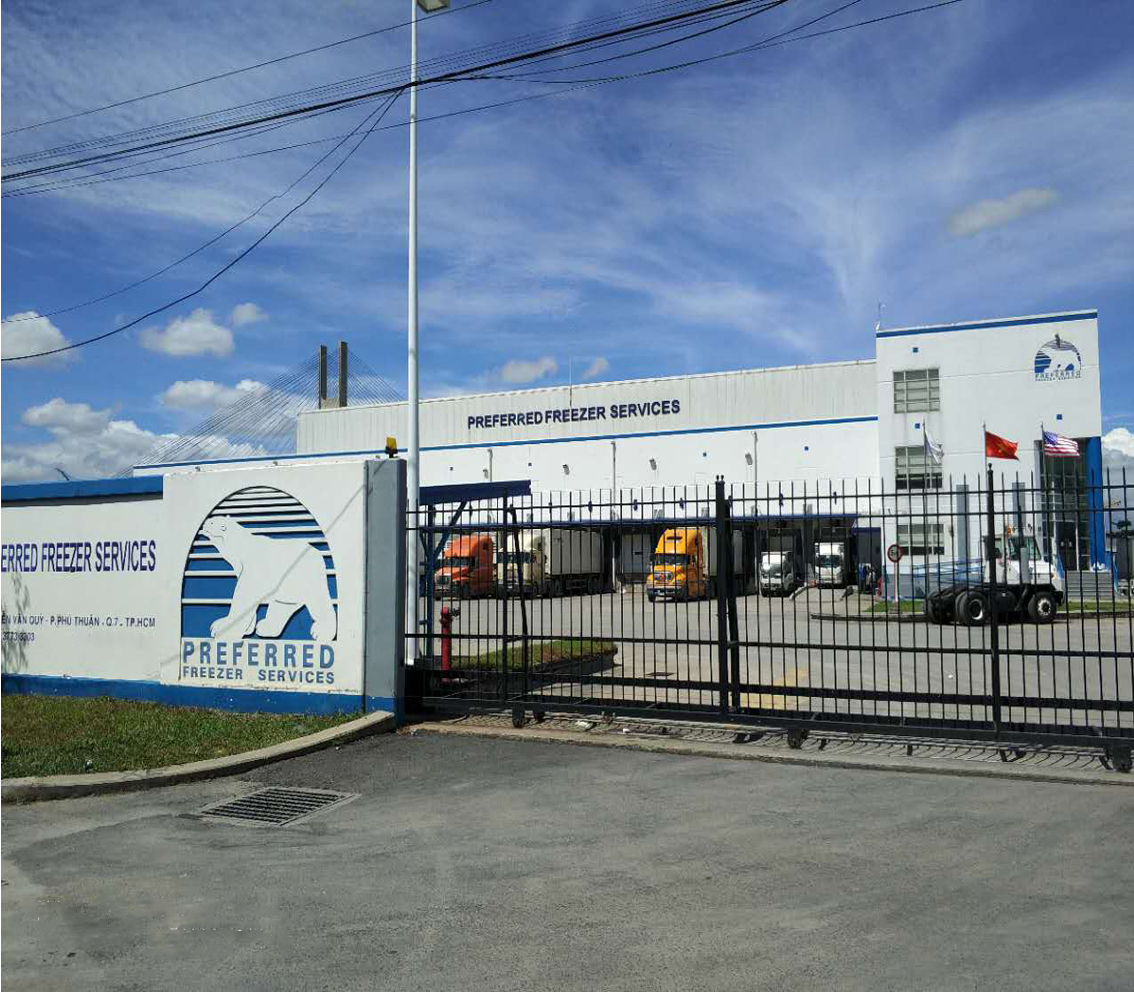

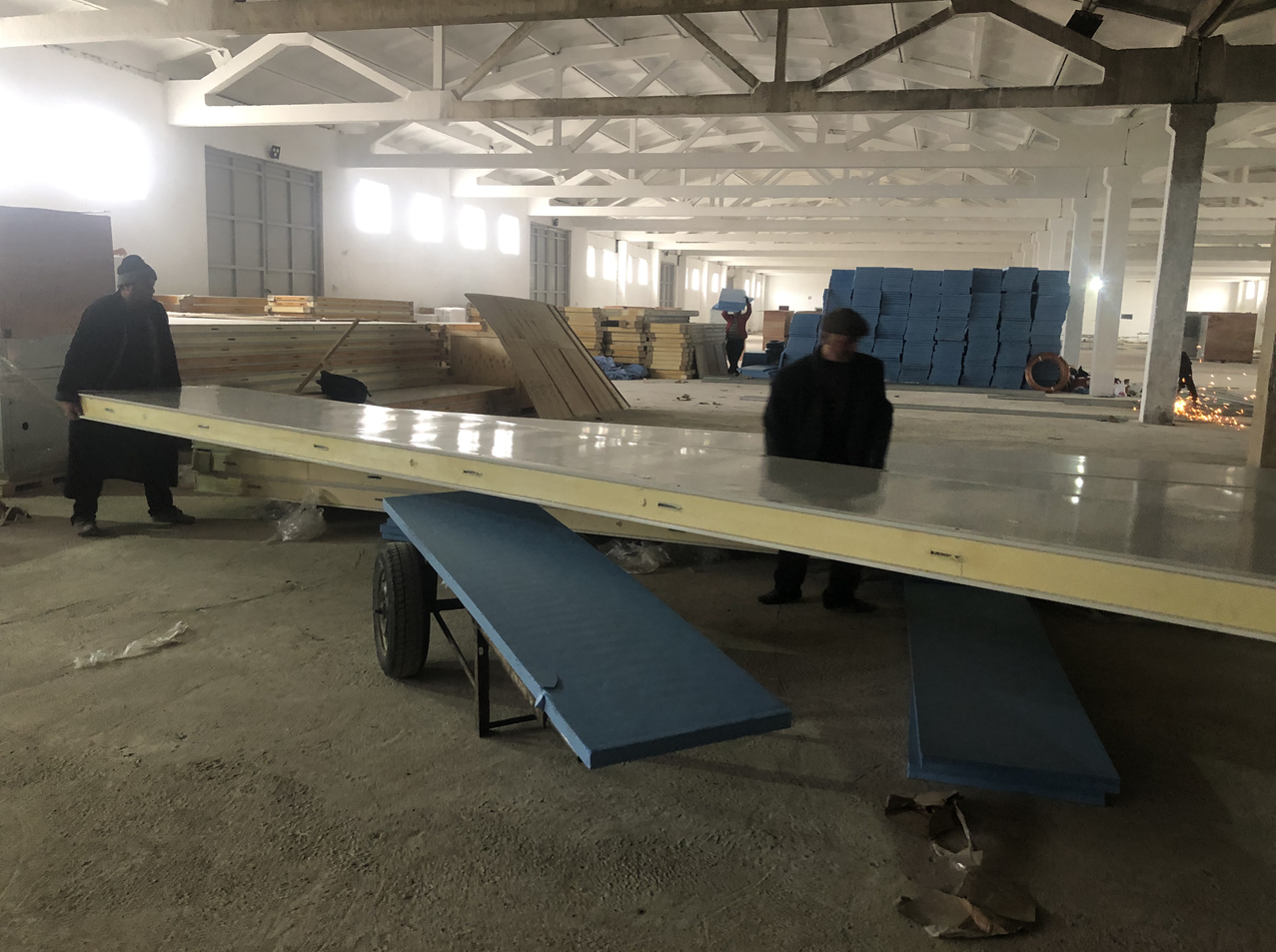

Overseas Project Showcase
Food Chain Cold Storage Project
- Project Scope: 5000 m² / Height: 6m
- Completion Timeline: 40 Days
- Installation Support: Combined technician and client-supplied crew

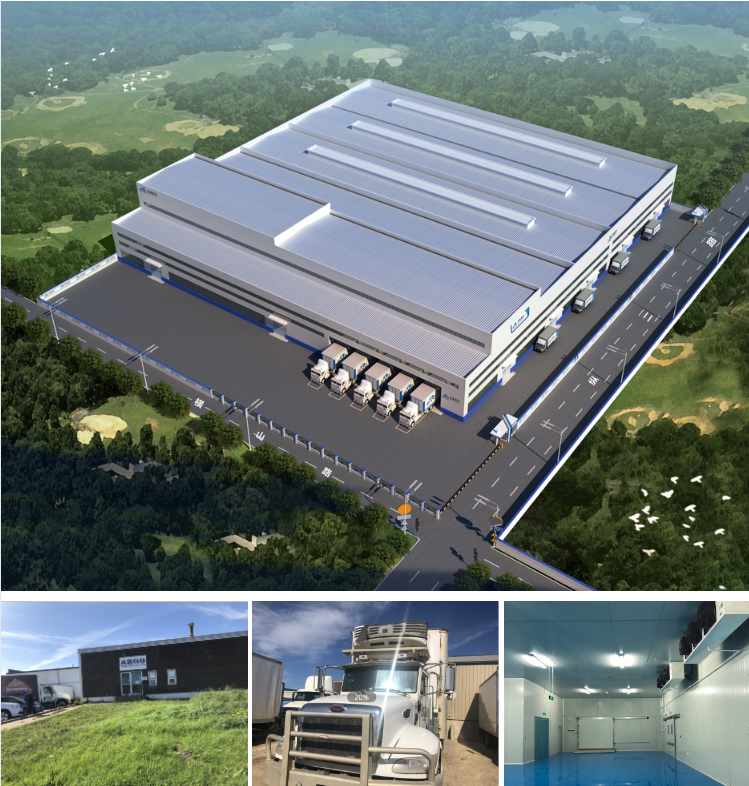

Cambodia Cold Storage Plan
Designed on the principles of safety, efficiency, and energy conservation, taking into account user investment orientations, usage demand, and local climatic conditions. Integrating modern technology and insulation materials, the system is efficient, energy-saving, and automated to lower system risks.

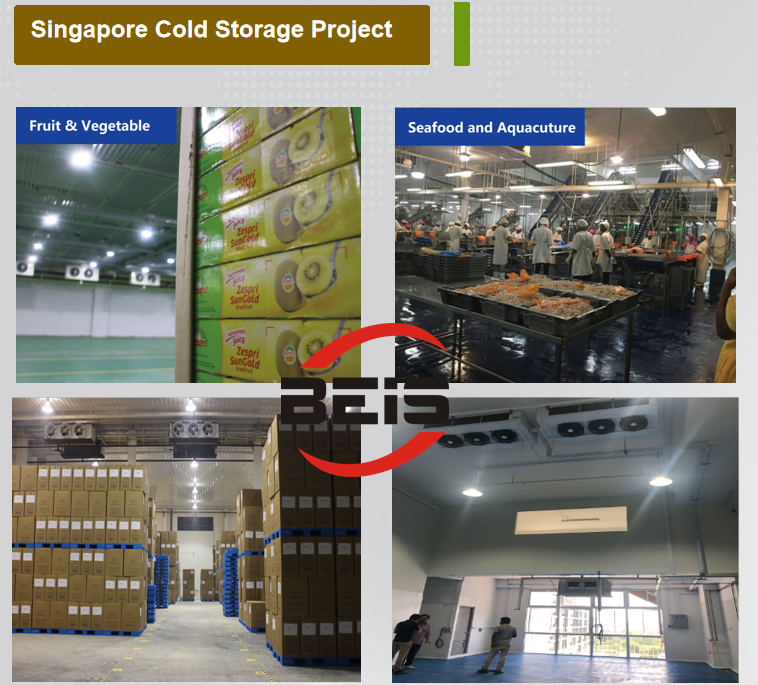

Singapore Cold Storage Project
- Project Dimensions: 1000 m² / Height: 4.5m
- Completion Timeline: 40 Days
- Installation Crew: 4 members

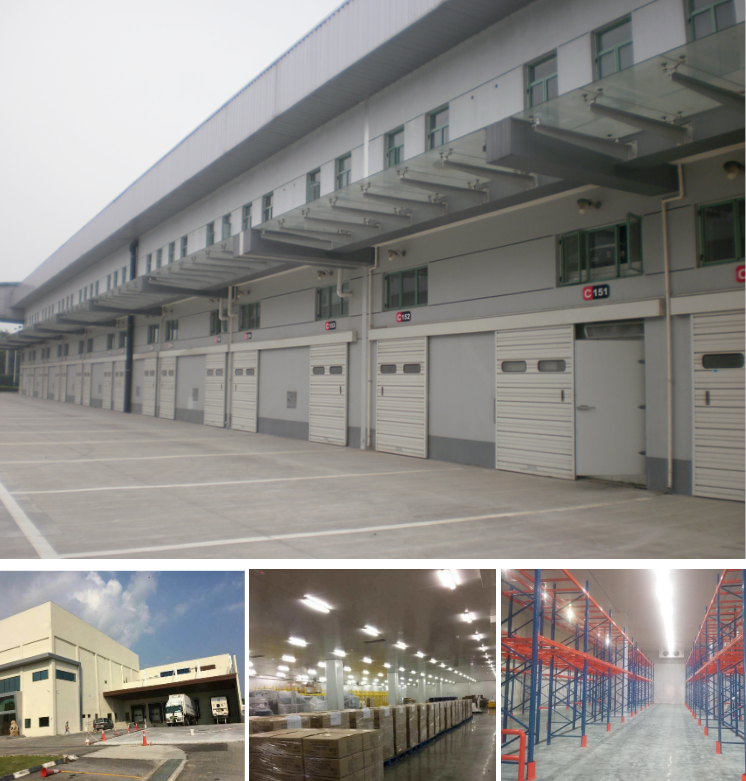

Canada Food Chain Project
- Project Layout: Chiller Room & Freezer Room segments (-5°C to -18°C)
- Compliance: Reaching Europe standard and CE certification
- Core Hardware: Spanish brand compressor units combined with JX insulated panels

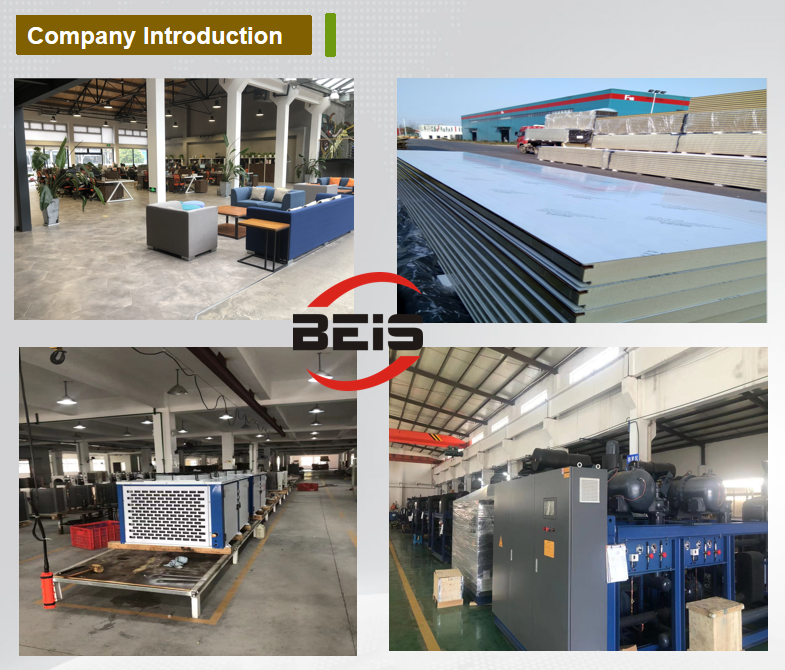

Company Introduction
We are a group company professionally providing commercial refrigeration and cold room one-stop solutions. We deliver customized products, including OEM and ODM services.
Our commercial refrigeration portfolio spans commercial refrigerators, kitchen refrigeration, chest freezers, beverage coolers, and back-bar coolers. Products are certified with CE, ROHS, SASO, NSF, and ISO 9001.
We export to over 40 countries, regularly launching new collection designs and executing cold storage projects.
Our Services & Strengths
Comprehensive cold storage constructor and commercial refrigeration equipment manufacturer. We handle the design, production, and supply of PU sandwich panels, compressor condensing units, evaporators, cold room lighting, door systems, and related structural accessories.
Frequently Asked Questions
Q1What materials are used for cold storage room insulation?
We use premium polyurethane (PU) and polyisocyanurate (PIR) insulated sandwich panels for the walls and ceiling, and extruded polystyrene (XPS) panels for heavy-duty floor insulation, ensuring excellent thermal performance.
Q2What are the fire retardant properties of the insulation panels?
Our PU/PIR and XPS panels are designed to meet fireproof grades of B1 or B2, complying with industry safety standards and offering strong flame-retardant performance.
Q3What brands of compressors do you integrate into the cold rooms?
We install top-tier compressor units from leading manufacturers, including German Bitzer, American Copeland, Tecumseh, and Italian Frascold, to match your specific performance requirements.
Q4Can you support custom voltages for the refrigeration systems?
Yes, our systems are built to accommodate local grid specifications, including 220V, 380V, 415V, and 480V, working on both 50Hz and 60Hz parameters.
Q5What door configurations are available for cold storage rooms?
We offer manual and automatic doors in swing, sliding, and controlled atmosphere (CA) styles, as well as customized high-speed PVC rapid roll-up doors for high-traffic environments.
Q6What details are needed to request a tailored cold room layout?
To provide an accurate design, please specify the intended application (e.g., fruit, meat, medical storage), the desired interior temperature, the physical dimensions (L*W*H), and the electrical supply parameters of the installation site.
