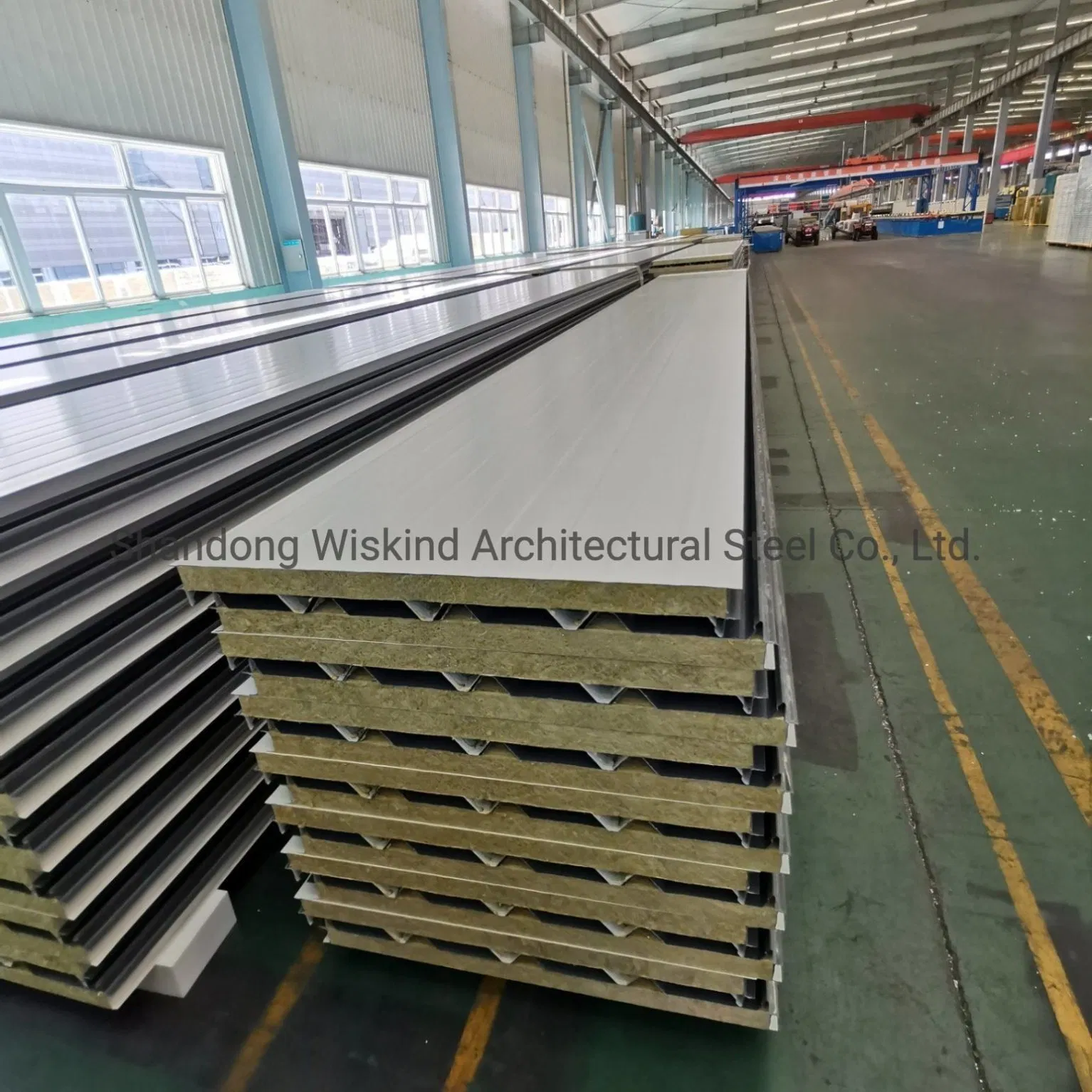

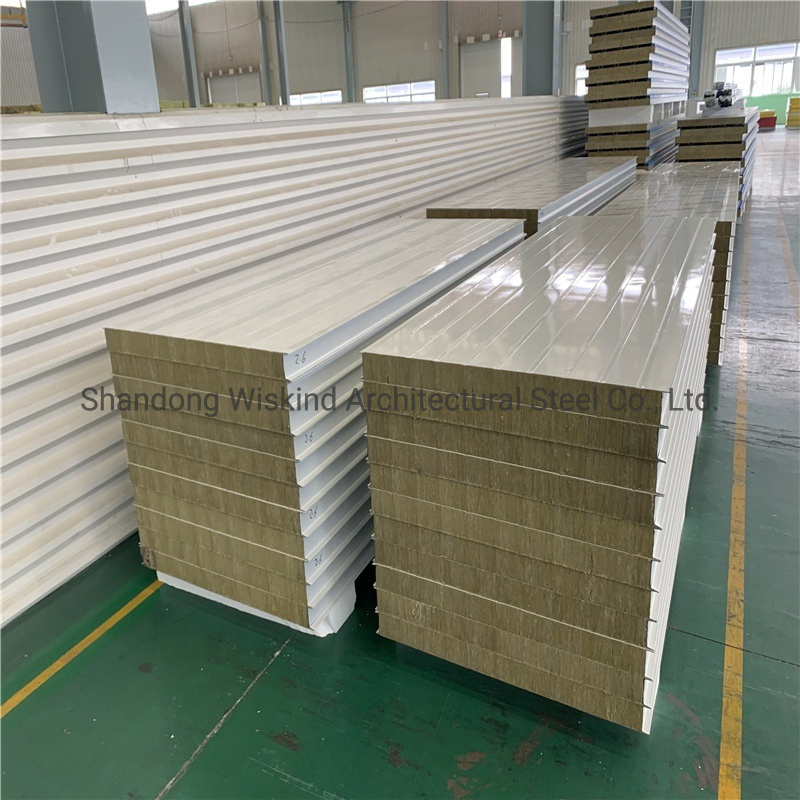

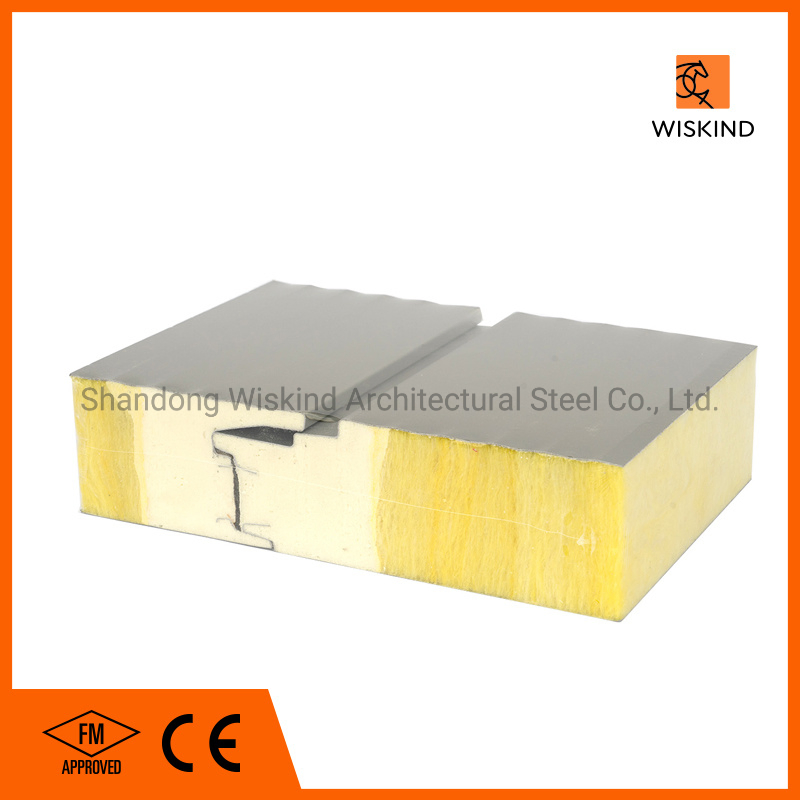

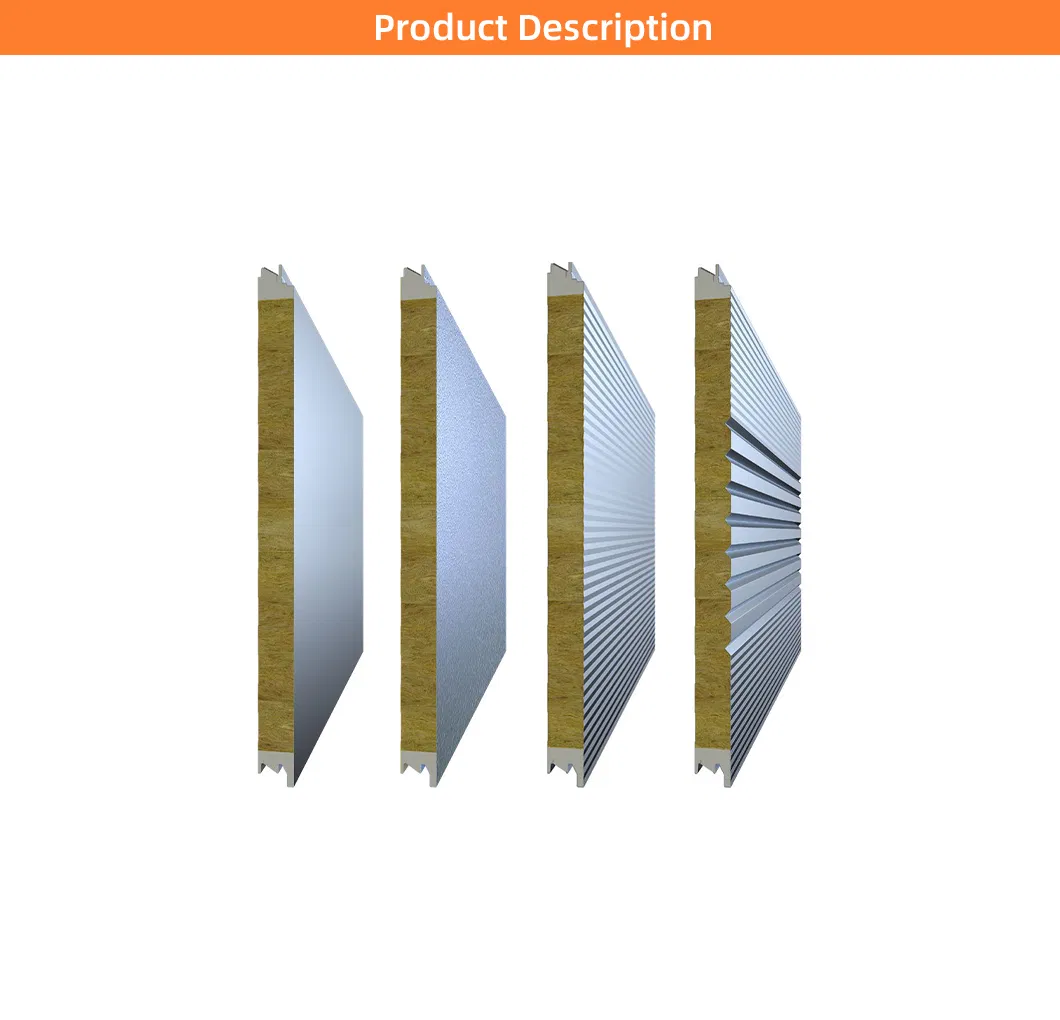

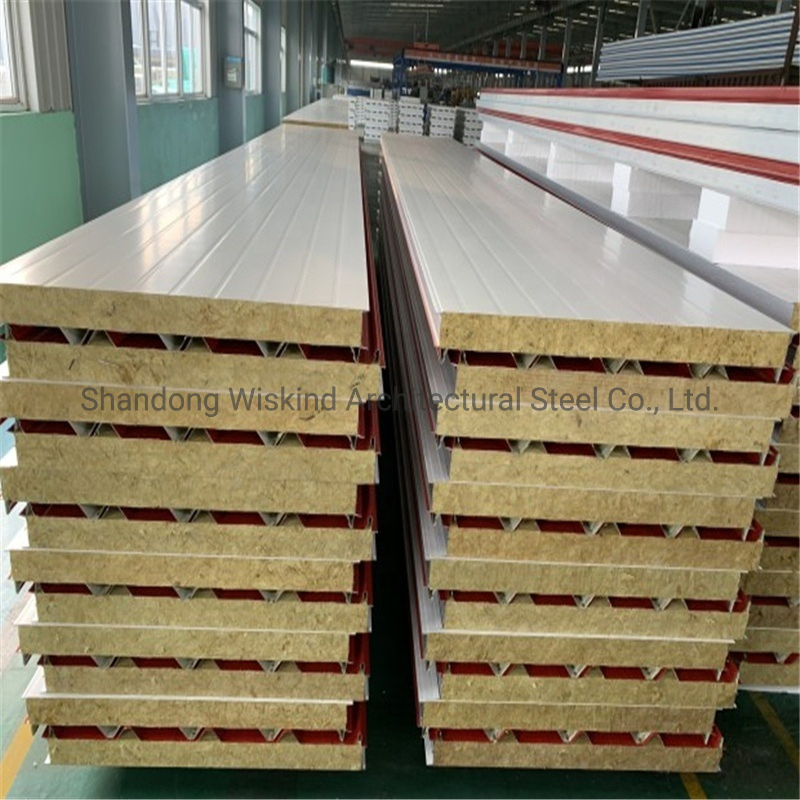

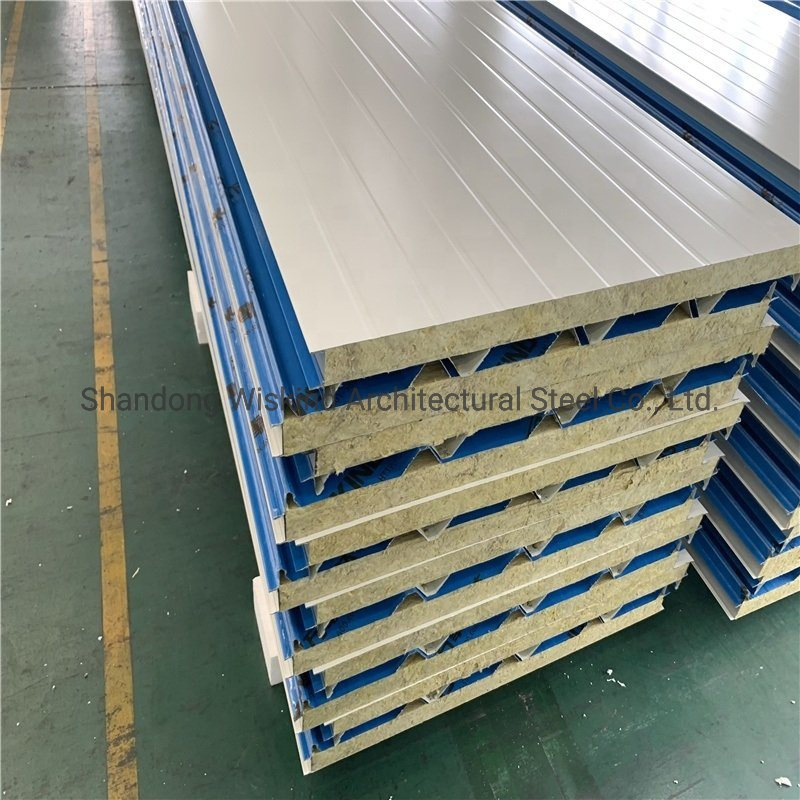

In order to meet the higher fire-proof requirement of buildings, the high-quality rock wool glass wool sandwich panel has been developed. The product uses high-quality water-proof rock wool / glass wool as the core material. Through the super long precision double-track curing, the product is excellent in terms of fire prevention, thermal insulation, noise reduction and environmental protection.
| Product Name | Rockwool Glasswool Sandwich Panel |
| Brand of Steel Plates | Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel. |
| Painting of Steel Plates | PVDF, SMP, HDP, PE; The top painting should be above 25μm. |
| Galvanized Layer of Steel Plates |
Exterior plate: 55% Aluzinc above 100G/M² or Zinc coating above 150G/M²; Inner plate: 55% Aluzinc above 70G/M² or Zinc coating above 100G/M² |
| Thickness of Steel Plates | 0.4mm-0.8mm. |
| Thickness of Core | 50mm/75mm/100mm/120mm/150mm. |
| Density of Core | 80/90/100/110/120kg/m³ |
| Effective Width | 950mm/1150mm |
| Panel Length | According to customers' request, less than 11.9m |
We have been dedicated in manufacturing and engineering steel building materials projects for over 40 years, providing steel structures, sandwich panels, corrugated steel sheet, floor decking sheet, C/Z purlin, and other related steel materials.
Strong R&D capability has always been a source of sustainable development. Significant investments are continuously made into the advanced research and development center and laboratories, which are dedicated to new product research, development, and experimental testing.
A team of professional technical and project management workers supports every project. From the initial project design to execution, professional technical staff work closely with you to deliver the best architectural solutions.
