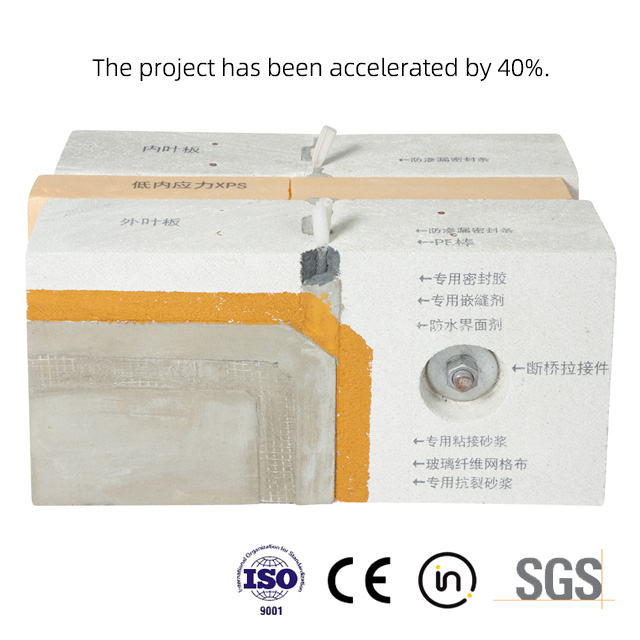

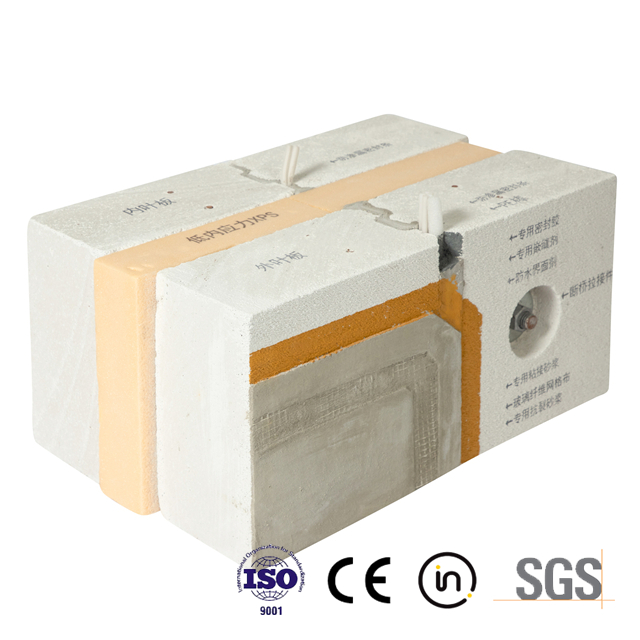

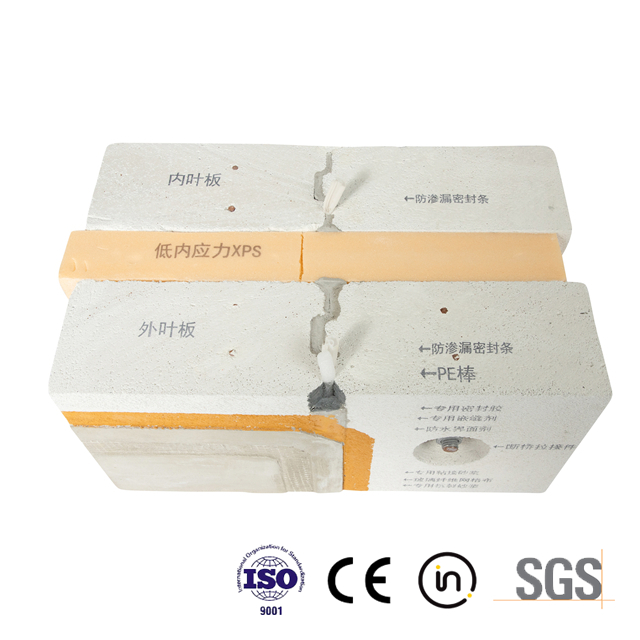

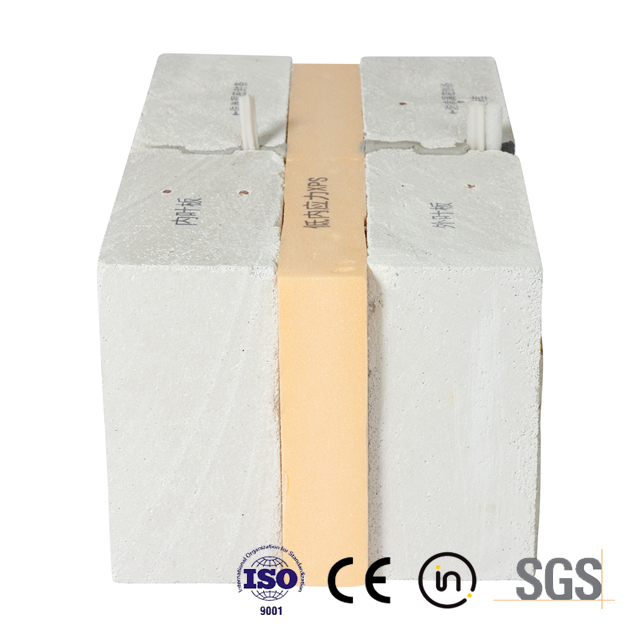

Autoclaved Sand Aerated Concrete Low Internal Stress Thermal Insulation Composite Wall Panel is a patented wall system independently researched and developed, which is a kind of prefabricated lightweight self-insulating external wall panel product for non-load-bearing external wall.
It effectively improves the thermal insulation performance of ordinary aerated concrete slats, and realizes that a single wall can meet the requirement of 80% and above energy saving.
The wall is factory-finished, which can effectively improve construction efficiency and reduce construction costs.

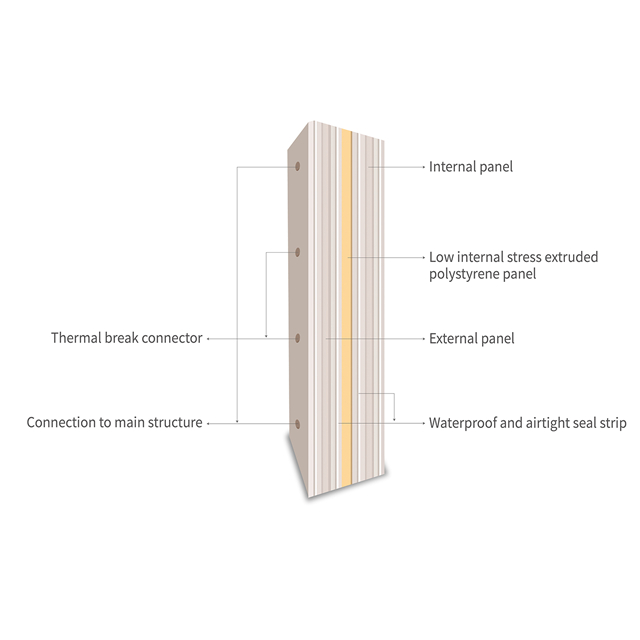

| Integrated Wall Panel (Outside) | |
|---|---|
| 80% Energy Saving | 100mm autoclaved aerated concrete panel for inner leaf |
| 40mm graphite extruded polystyrene board | |
| 100mm autoclaved aerated concrete panel for outer leaf | |
| 83% Energy Saving | 100mm autoclaved aerated concrete panel for inner leaf |
| 50mm graphite extruded polystyrene board | |
| 100mm autoclaved aerated concrete panel for outer leaf | |
| Ultra-low Energy Consumption 0.15W/(m²K) |
150mm autoclaved aerated concrete panel for inner leaf |
| 140mm graphite extruded polystyrene board | |
| 100mm autoclaved aerated concrete panel for outer leaf | |
| Standard Size | ||
|---|---|---|
| Length (mm) | Height (mm) | Thickness T |
| 1200 ~ 6000 | 600 | Based on energy efficient design requirements |
| 300 Module Feed | ||
| Note: Other sizes to be agreed upon above supply and demand. | ||
