Explore our flagship industrial partition walls, roofing, and specialty engineered modular cladding systems designed to satisfy stringent thermal, load-bearing, and hygiene requirements.
The modern architectural sector demands materials that balance structural strength, rapid assembly speed, and strict environmental credentials. Ningbo Jonas Build Co., Ltd. stands at the forefront of this industrial transformation. As a premium manufacturer and exporter, our CE-certified lightweight partition walls and composite sandwich panel systems address the complexities of modern engineering design.
From highly regulated healthcare operating theaters to thermal-controlled supply chain depots, our lightweight panels offer the ideal alternative to masonry and heavy steel walls. They significantly reduce dead loads on structures while maintaining top-tier fire resistance (A1 rating) and acoustic decoupling capabilities.
By employing automated continuous double-belt production systems, we supply products with uniform density, excellent thermal core adhesion, and absolute dimensional stability. This ensures reliable field performance across all projects.
Modern projects require building elements to satisfy multiple performance indicators simultaneously. Our CE Certified Lightweight Partition Panels are designed as comprehensive system solutions rather than simple raw materials.
Buildings contribute significantly to global carbon output. By utilizing polyisocyanurate (PIR) and polyurethane (PU) cores with zero ozone depletion potential (ODP), our partitions help projects earn points toward LEED v4, BREEAM, and DGNB certifications. The high thermal resistance reduces operational energy consumption over the building's lifespan.
In offices, cinema halls, and hospitals, noise transmission affects health and productivity. Our polyester fiber and high-density rockwool cores deliver sound attenuation ratings exceeding 45dB, neutralizing structural vibration and ambient noise. These panels feature an NRC (Noise Reduction Coefficient) of up to 0.80, ensuring quiet interiors.
Traditional rigid masonry structures are highly vulnerable to seismic activity. Our lightweight composite walls feature an interlocking tongue-and-groove joint profile, allowing for controlled elastic movement. Under lateral seismic loads, the partition system distributes stress without brittle fracture, safeguarding occupants.
Select the right partition core chemistry based on your project's thermal, mechanical, and fire safety specifications.
| Core Material Option | Thermal Conductivity (λ) | Fire Classification (EN 13501-1) | Acoustic Reduction (Rw) | Optimal Application Scenarios |
|---|---|---|---|---|
| Polyurethane (PIR/PUR) | 0.020 - 0.024 W/m·K | Class B-s1, d0 (Flame Retardant) | ~ 25 - 28 dB | Cold Storage, Food Processing, External Insulated Walls |
| Mineral Rock Wool | 0.035 - 0.040 W/m·K | Class A1 (Non-combustible) | ~ 32 - 42 dB | High-fire Risk Zones, Soundproof Studios, Data Centers |
| SMC Fiberglass | 0.120 - 0.160 W/m·K | Class B (Flame Resistant) | ~ 30 dB | Corrosive chemical warehouses, Outdoor electrical cabins |

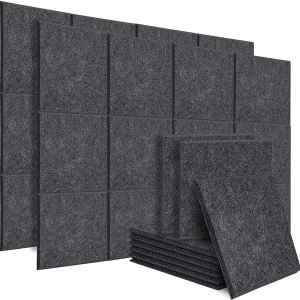

| Polyester Fiber Core | 0.038 - 0.045 W/m·K | Class B-s2, d0 | NRC 0.80 (High Sound Absorption) | Acoustic drop ceilings, Office partition dividers |
Ningbo Jonas Build Co., Ltd. designs and manufactures products to satisfy international standards. Our panels are tested under European norms to guarantee structural, fire safety, and environmental performance.
Our sandwich panels carry the CE Mark under EN 14509 (Factory-made double skin metal faced insulating sandwich panels). This confirms our compliance with:
Building codes vary significantly between North America (ASTM standards), the Middle East (Civil Defence approvals), and Europe. Jonas Build assists engineering and architectural firms with project-specific documentation:
1. Wind & Structural Calculations: We determine load-span tables to verify structural integrity under localized wind pressures and suction forces.
2. Interface Detailing: We provide CAD and BIM drawings showing junctions, corner details, cleanroom coving, and flashing interfaces to prevent cold bridges.
3. Anti-Corrosion Options: For marine environments or chemical processing plants, we supply steel skins with PVDF or food-safe coatings to prevent oxidation.
Jonas Build is investing in material science research to drive the future of smart building envelopes and partition walls.
Integrating plant-derived polyols into our polyurethane formulations, reducing the carbon footprint of raw materials while maintaining insulation performance.
Researching Phase Change Materials (PCMs) within the partition core to absorb heat during peak sunlight hours and release it at night, lowering HVAC loads.
Development of interlocking joint seals that eliminate mechanical fasteners on tall internal partitions, speeding up construction and improving airtightness.
Find engineering data and deployment insights for lightweight partition wall systems.
Ningbo Jonas Build Co., Ltd. is a professional China industrial construction panel manufacturer specializing in insulated building panel solutions for global industrial and commercial construction projects. With extensive industry experience and advanced manufacturing capabilities, the company is committed to delivering high-quality, energy-efficient, and customized panel systems that meet the diverse requirements of customers worldwide.
The company provides a comprehensive range of products, including insulated sandwich panels, industrial wall panels, roofing panels, cold room panels, cleanroom panels, fire-rated panels, and customized building envelope solutions. Designed for superior thermal performance, structural reliability, and rapid installation, these products are widely used in industrial plants, warehouses, logistics centers, cold storage facilities, commercial buildings, modular construction projects, and infrastructure developments.
Ningbo Jonas Build Co., Ltd. operates modern production facilities equipped with advanced automated manufacturing lines, precision processing equipment, and strict quality inspection systems. Supported by a skilled team of engineers and technical specialists, the company offers one-stop services covering project consultation, product design, manufacturing, quality assurance, packaging, and international logistics coordination.
Innovation, quality, and sustainability are the core values driving the company's development. By utilizing advanced production technologies and premium raw materials, Jonas Build continuously enhances product performance in thermal insulation, fire resistance, weather protection, and energy efficiency. The company's panel systems help customers reduce construction time, lower operating costs, and improve overall building performance.
Committed to excellence and customer satisfaction, Ningbo Jonas Build Co., Ltd. has established long-term business relationships with clients across Asia, Europe, the Middle East, Africa, and the Americas. The company remains dedicated to providing reliable insulated building panel solutions that support sustainable construction and create long-term value for customers worldwide.
Industrial, commercial, and modular panels designed for acoustic dampening, biological cleanroom settings, cold-chain operations, and external wall finishes.
