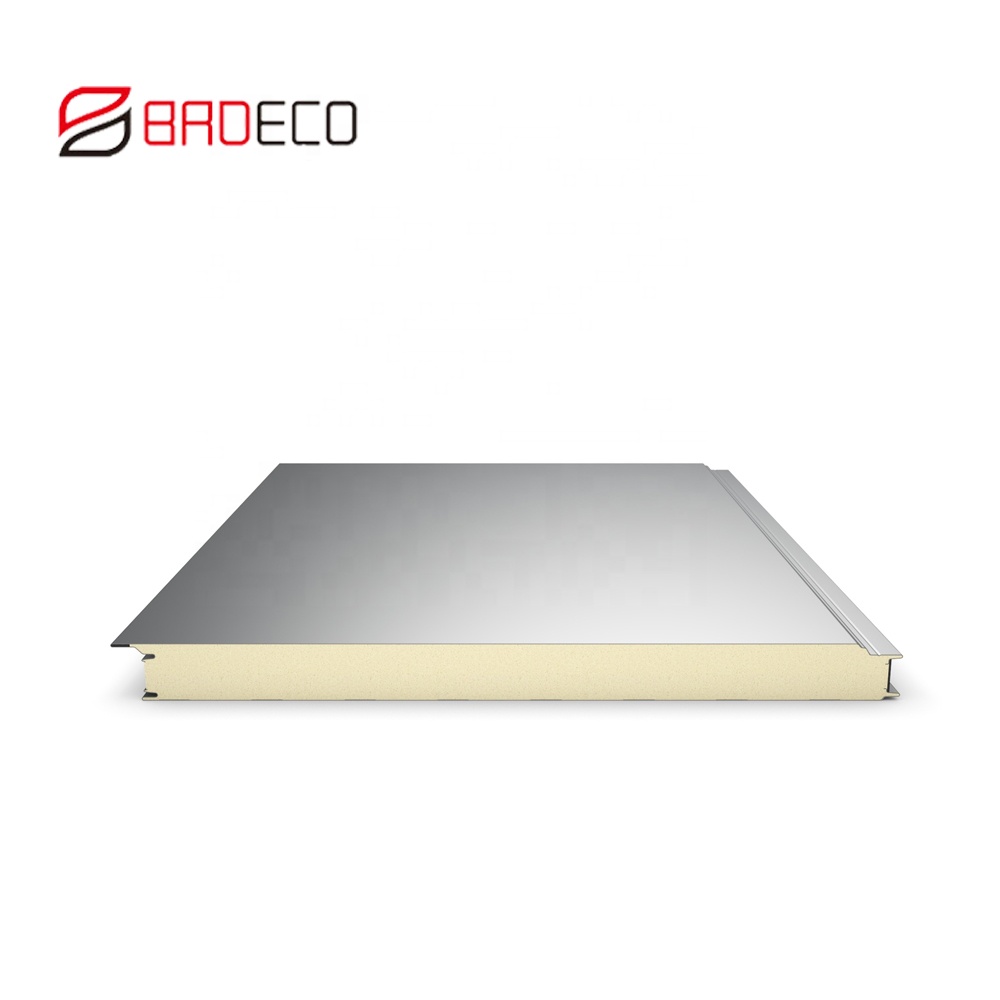

Polyurethane sandwich wall panels are high-performance building envelope materials. They are formed through a continuous molding process, combining two metal panels (or non-metallic panels) with a polyurethane rigid foam insulation layer. They combine thermal insulation, decoration, and structural benefits, mainly used in industrial logistics buildings, cold chain, public commercial facilities, agricultural and animal husbandry buildings, etc.

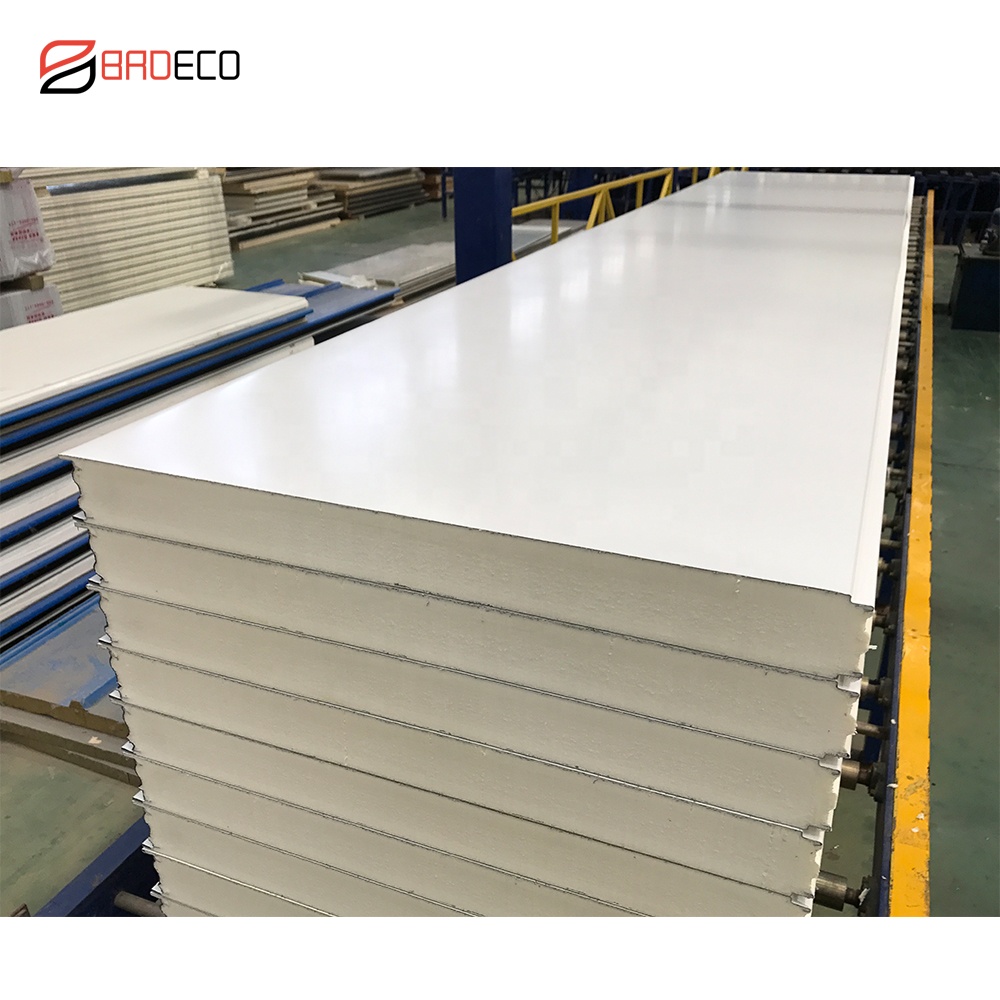

The group has successively introduced Italy's fully automatic continuous production line Puma Line and Germany's KraussMaffei Line, which have the characteristics of high automation, high control accuracy, and high safety and stability. It can produce various types of continuous self foaming PUR/PIR polyurethane color steel sandwich panels of 5 million square meters per year, thereby completing customer orders with high quality and efficiency, meeting the personalized enclosure system construction needs of different customers in a one-stop manner.
| PU/PIR Wall Sandwich Panels Specifications | |
|---|---|
| Standard Width | 1000mm |
| Length | ≤ 11800 mm |
| Surface Material | Coated steel |
| Surface Thickness | 0.35-0.7 mm |
| Coating | PE/SMP/HDP/PVDF |
| Core Material | PU |
| Volume Weight | 40±2 kg/m³ |
| Thickness | 50-200 mm |
| U Value | ≤0.024 w/mk |
| Fire Rating | CLASS B1 |
| Joint | 2-sided Joint |
| Process | Continuous production line |

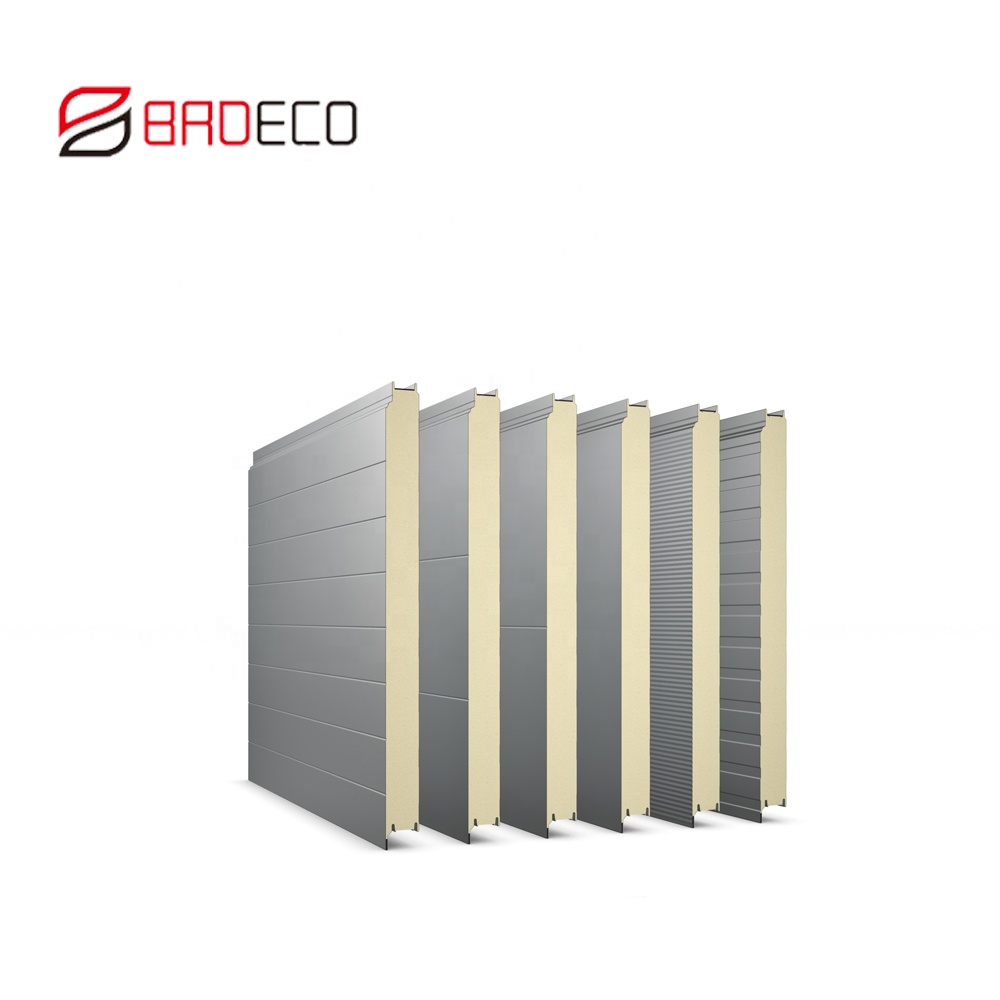

| Surface Texture | Flat, orange grain, rib grain, corrugation, V8 corrugation |
PU/PIR sandwiches offer excellent heat preservation, insulation, and soundproofing. Additionally, pleasant is non-combustible and meets fire safety standards, with the joint action of the upper and lower panels and polyisocyanurate, has high strength and rigidity, and the lower panel is smooth and flat with clear lines, which increases the aesthetics and flatness of the room. It is a new type of building material with easy installation, short construction period and beautiful appearance.
The thermal conductivity of polyurethane rigid foam is typically between 0.018 and 0.024 W/(m·K). This is significantly lower than most common insulation materials (such as EPS foam, rock wool, and glass wool). Thinner sheets can achieve the same or even better insulation performance.
PU sandwich panels, with their excellent thermal insulation properties, can reduce building energy consumption, significantly reduce air conditioning and heating operating costs, bring long-term and significant economic benefits, and comply with green building requirements.
The lightweight nature of these panels reduces building loads, while their excellent compressive and bending resistance allow them to serve as both load-bearing and envelope structures. The integrated molding process ensures resistance to delamination and deformation.

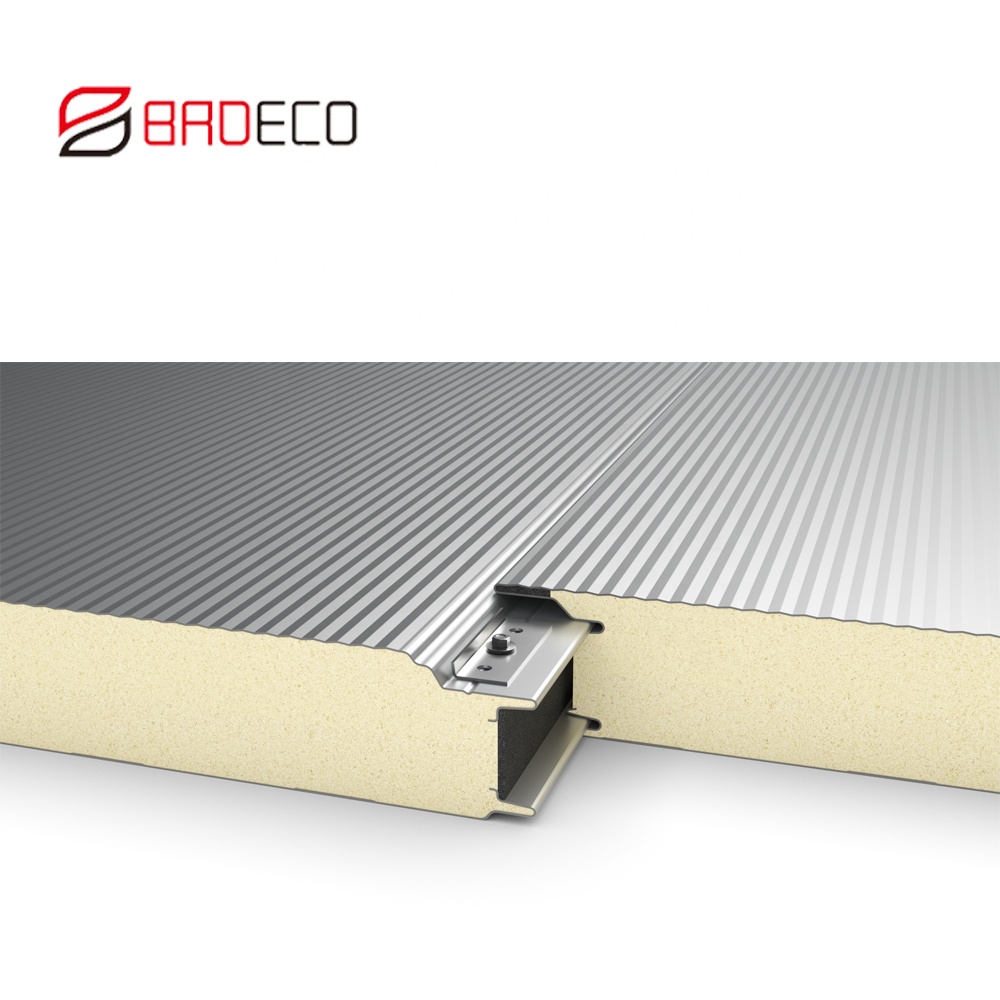

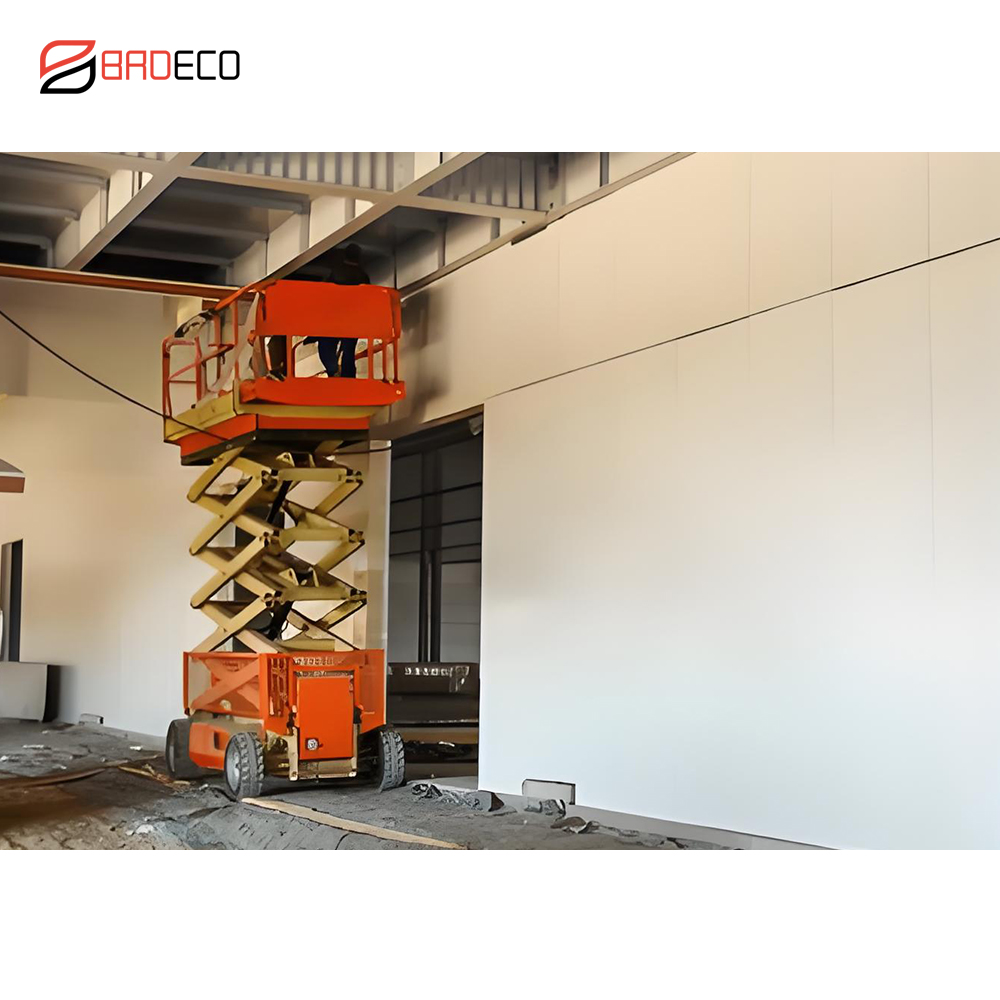

The panels are prefabricated in the factory, ensuring precise dimensions and consistent quality. Upon arrival at the construction site, they can be assembled directly (e.g., using tongue-and-groove plug-in installation). This fast installation process significantly shortens construction time.
By adding flame retardants, polyurethane sandwich panels can achieve Class B1 (flammable) or Class B2(combustible) fire protection standards. High-quality B1-rated products effectively slow the spread of fire and meet standard fire protection requirements.
Rigid polyurethane foam features a high closed-cell ratio (≥90%). These pores are not interconnected, making them less susceptible to moisture absorption and providing excellent waterproof and moisture-proof properties. This is particularly important for cold storage.
Our sandwich facade products are highly innovative in terms of material structure, system design, and manufacturing processes. Its advanced prefabricated building design concept allows the advantages of standardized design, factory processing and modular construction to be fully utilized. Please contact us for more information on the sandwich facade systems.
| ROCK WOOL WALL PANEL WITH PU SEALING | |
|---|---|
| Standard Width | 1000mm |
| Length | ≤ 11800 mm |
| Surface Material | Coated steel |
| Surface Thickness | 0.35-0.7 mm |
| Core Material | Rock Wool |
| Volume Weight | 100-140 kg/m³ |
| Thickness | 50-150 mm |
| U Value | 0.030 - 0.044w/mk |
| Fire Rating | CLASS A |
| NRC | Excellent (0.8-1.0+) |
| Core Advantages | Fire protection |
| GLASS WOOL WALL PANEL | |
|---|---|
| Standard Width | 1000mm |
| Length | ≤ 11800 mm |
| Surface Material | Coated steel |
| Surface Thickness | 0.35-0.7 mm |
| Core Material | Glass Wool |
| Volume Weight | 64 kg/m³ |
| Thickness | 50-150 mm |
| U Value | 0.034 - 0.046 w/mk |
| Fire Rating | CLASS A |
| NRC | Excellent (0.7-1.0+) |
| Core Advantages | Sound absorption |
We have achieved over 17,000 successful project cases. Our professional design team is equipped with high-standard equipment to provide customized solutions that meet client requirements perfectly.
Founded in 2011 (Stock Code: 873445), we are a national high-tech enterprise specializing in the research, development, manufacturing, and service of green, energy-saving, and environmentally friendly new materials. Our main business focuses on key areas such as cold storage and industrial insulation materials, integrated decorative and insulation panels, and other mainstream international green, energy-saving, and environmentally friendly new materials.
Building a better world, making life more comfortable for people and architecture on Earth.
To be the world’s most beautiful factory, creating products and nurturing talent, achieving both spiritual and material prosperity for employees. To provide professional and systematic brand services for customers, complement strengths with peers, and coexist harmoniously. To save energy and contribute to society through public welfare.
We offer world-leading intelligent, fully automated workshops, including the German Klaus Maffei production line, Italian fully automatic continuous production line Puma line, Korean automatic cutting line, Italian OMS company's 14 meter extended feeding system, wiring PIR hook plate cyclopentane foaming system, etc. Please send us an inquiry for an in-depth discussion.
We have built 10 product lines, including 3 automatic polyurethane energy-saving panel production lines, 3 automatic clean room panel production lines, 3 fully automatic insulation integrated panel production lines, and 1 curtain wall aluminum plate production line. The annual production capacity is about 30 million square meters.
The company employs nearly 500 staff members, including 50 R&D personnel. The enterprise has established six major manufacturing bases and operates 10 domestic business centers and 6 overseas business centers. It also features standard laboratories.
Having served over 17,000 domestic and foreign customers, we promote the intensive use of social resources through the innovation and circulation of industrial products. We are fully committed to being a respected and sustainable business.
Headquarters Base
Manufacturing Factory
Manufacturing Factory
Manufacturing Factory
Manufacturing Factory
Branch Office
Branch Office
Branch Office
Branch Office
Our sandwich composite panel selects high-quality raw materials combined with mature panel type and scientific installation details design, to create a multi-purpose sandwich panel that features outstanding fire resistance, heat preservation, watertightness, weatherability, wind resistance, pressure resistance, as well as sound absorption and insulation, so as to meet the personalized requirements of the client.
Yes, of course. We highly welcome customers to visit our automated manufacturing bases to inspect our production processes and facilities.
Yes, of course. We support customized lengths, thicknesses, widths, core materials, and surface textures based on your detailed building specification.
Yes, of course. We perform a 100% test on all products and supply complete quality testing reports before shipment.
Normally it is 10 to 30 days. The exact timeframe depends heavily on order size, total quantity, configuration, and production schedules.
We accept flexible payment terms including T/T and L/C. For price terms, we accept EXW, FOB, CFR, CIF, DDU, and more.
We provide 24 hours' technical support online via e-mail, phone, and video calls to assist with installation and maintenance issues.
